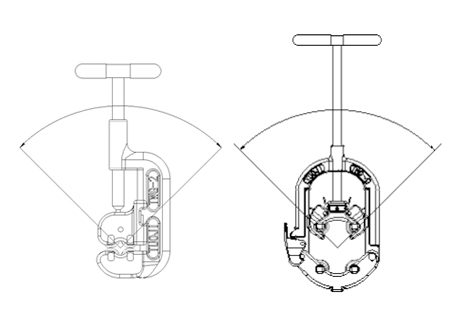

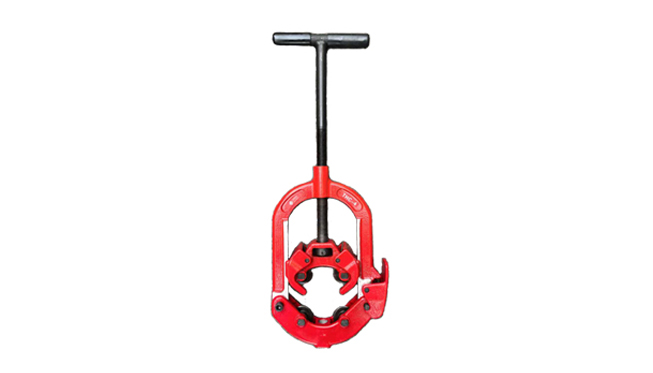

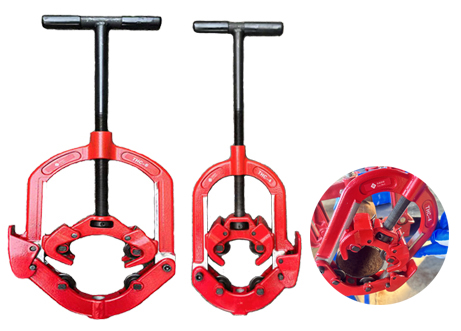

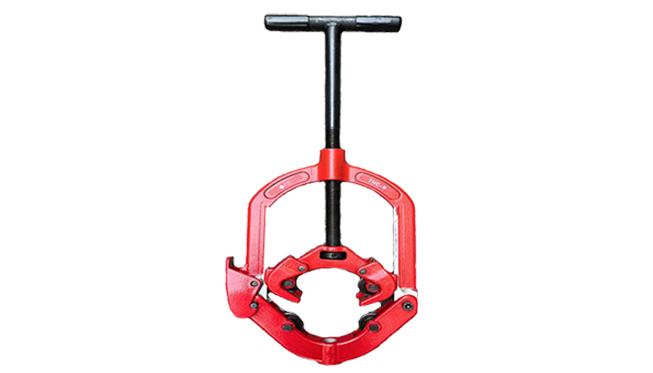

The Hinged Pipe Cutter is a high-performance cold cutting tool designed for multi-material pipes and demanding jobsite conditions. Featuring a four-blade synchronized cutting system, it cuts pipes quickly with simple 90°–110° back-and-forth movement, eliminating the need for full rotation.
WhatsApp: 8615515833787 WeChat: 15515833787Fast & Effortless Cutting – Four synchronized blades and an enclosed blade system deliver powerful cutting with less effort. Only 90°–110° back-and-forth movement is required, greatly improving work efficiency.
Confined Space Operation – Requires only 4 inches (102mm) of clearance around the pipe, making it ideal for tight and restricted areas.
Flexible Cutting Movement – No full 360° rotation required, allowing easy operation in complex spaces with limited swing range.
Precise Straight Cuts – Rigid guide frame and spring-guided system keep blades on a fixed path, producing smooth, straight cuts without burrs or secondary processing.
All-Environment Performance – Reliable operation in trenches, underwater areas, overhead piping, pipe racks, and hazardous locations.
Multi-Material Cutting – Effectively cuts carbon steel, stainless steel, cast iron, and ductile iron pipes, especially suitable for heavy-wall steel and ductile iron applications.
Spark-Free & Safe – Advanced cold cutting technology produces no heat or sparks, ensuring safer operation in flammable and explosive environments.
Portable & Durable Design – Lightweight yet rugged construction allows easy transport and long-term use in demanding field conditions.
Suitable for carbon steel, stainless steel, cast iron, and ductile iron pipes, it delivers excellent performance especially on ductile iron and heavy-wall steel pipes. The compact design requires only 4 inches (102mm) of working clearance, making it ideal for confined spaces such as pipe racks and overhead installations.
Equipped with a rigid guide frame and enclosed blade system, it ensures straight, burr-free cuts with reduced operating force. The spark-free cold cutting technology provides safe operation without heat or sparks, making it suitable for hazardous environments in municipal, oil & gas, chemical, and mining industries.
The Hinged Pipe Cutter is designed for demanding environments and a wide range of industrial applications:
Underground Operations – Ideal for trench work, underground pipeline repair, and mining applications, even in wet and confined areas.
Wet Environments – Suitable for pipe cutting and maintenance in water or flooded areas with reliable performance.
Hazardous Locations – Spark-free cold cutting technology ensures safe operation in oil, gas, and chemical industries.
Tight & Overhead Spaces – Perfect for cutting pipes between racks, overhead pipelines, and other restricted areas.
Industrial Applications – Widely used for water supply, gas pipelines, machinery piping, and mining equipment, especially for ductile iron, carbon steel, and heavy-wall steel pipes.
|
Name |
Model |
Suitable Pipe Diameter (Inch) |
Suitable Pipe Diameter (mm) |
Length (Inch) |
Length (mm) |
Weight (Lb) |
Weight (Kg) |
|
Hinged Pipe Cutter |
THC-2 1/2 |
1-2 1/2 |
32-76 |
17 |
419 |
7.2 |
3.3 |
|
Hinged Pipe Cutter |
THC-4 |
2-4 |
60-125 |
22 |
559 |
12.8 |
5.8 |
|
Hinged Pipe Cutter |
THC-6 |
4-6 |
114-182 |
28 |
711 |
19.4 |
8.8 |
|
Hinged Pipe Cutter |
THC-8 |
6-8 |
168-240 |
32 |
813 |
24.4 |
11.1 |
|
Hinged Pipe Cutter |
THC-12 |
8-12 |
219-356 |
34 |
864 |
34.9 |
15.9 |
Install or replace blades only when the machine is stopped, and ensure they are securely fixed before operation.

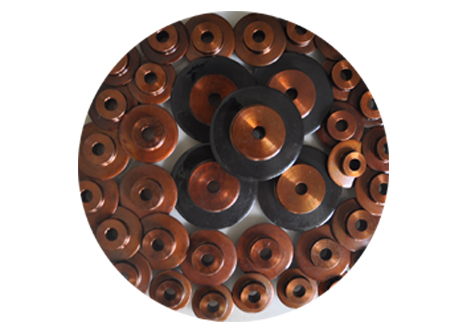

Select the correct blade according to pipe material. Standard blades are designed for carbon steel; special blades are required for cast iron cutting.
Keep the cutter stable and operate with 90°–110° reciprocating movement for smooth and accurate cutting.
Use proper safety protection in hazardous or wet environments to ensure safe operation.
Store the tool in a dry, ventilated place to prevent rust and blade damage.
Replace worn or dull blades promptly to maintain cutting efficiency and cutting quality.
Model Selection Support – Provide pipe material and diameter information to get the right cutter and blade solution.
Custom Blade Options – Special blades are available for cast iron and other specific pipe materials.
After-Sales Service – Professional guidance for operation, maintenance, and troubleshooting.
Bulk Purchase Benefits – Competitive pricing is available for large-volume orders.
After-Sales Service – Offer technical guidance, maintenance support, and quality assurance.
Bulk Purchase Options – Competitive pricing for large-volume orders.
