Henan LuKuang Trading’s HDPE cable sheathing (HDPE conduit) complies with international standards such as ISO 4427 and is certified by CE and ISO 9001. Made from premium PE100 raw materials, it offers high toughness, a smooth inner surface, and a lightweight design, ensuring reliable and efficient power system performance. For more details, please contact us.
WhatsApp: 8615515833787 WeChat: 15515833787Size Range: Nominal diameter DN16-1600mm (customizable according to customer needs)
Pressure Rating: SDR 41-PN 4, SDR 33-PN 5, SDR 26-PN 6, SDR 21-PN 8, SDR 17-PN 10, SDR 13.6-PN 12.5, SDR 11-PN 16, SDR 9-PN 20, SDR 7.4-PN 25, SDR 6-PN 32
Service Life: Up to 70 years under normal use, and 70-100 years when buried underground
Raw Materials: PE80, PE100, PE4710 (mainly high-quality virgin PE100 resin)

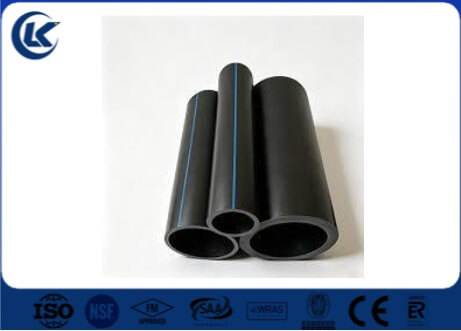

Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications
Color Options: Yellow or black, customizable according to requirements for easy distinction in different scenarios

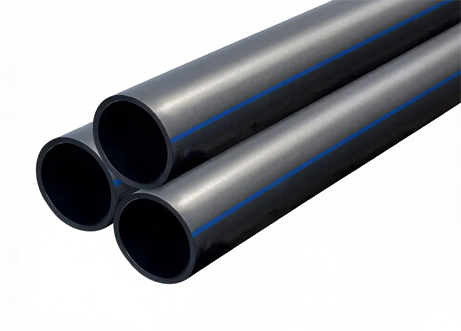

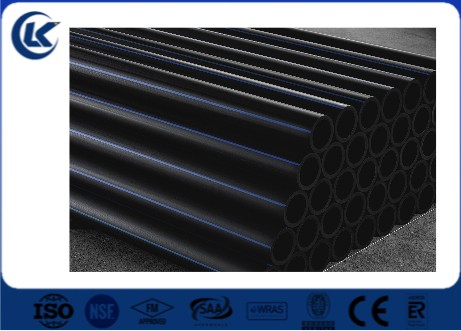

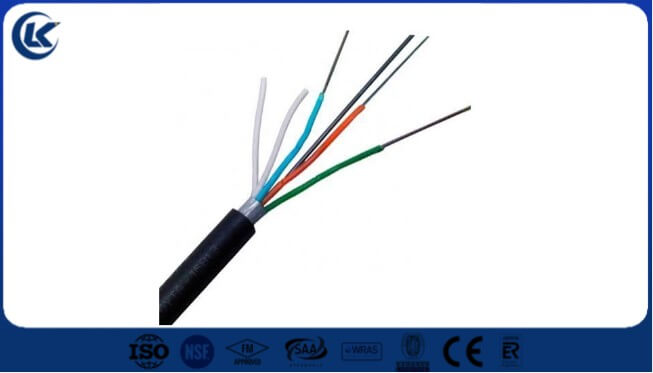

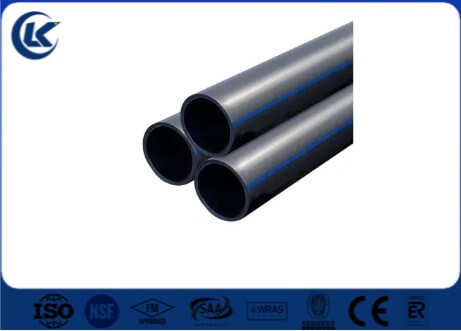

HDPE Conduit (Cable Sheath) is a professional cable protection sleeve made from high-quality high-density polyethylene (HDPE) resin as the main raw material, combined with special additives and produced through extrusion processing.
Manufactured in strict accordance with international standards, it offers excellent physical strength, chemical stability, and electrical insulation performance. It is designed to protect various types of cables, isolate external environmental interference, and ensure safe and stable cable operation, widely used in power, communication, and other wiring applications.

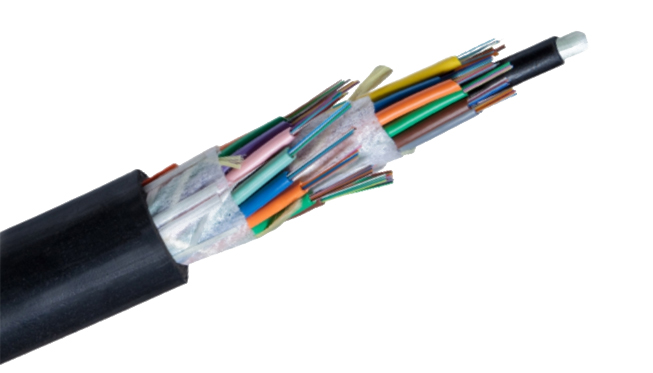

Cable Safety Protection: Resists impact, corrosion, and wear, fully protecting cables and ensuring stable operation.
Extended Service Life: Blocks moisture, acids, alkalis, and UV damage, reducing wear and maintenance costs.
Easy Installation & Maintenance: Flexible and bendable design adapts to complex layouts, simplifying installation work.
Improved Electrical Safety: Excellent insulation reduces leakage and short-circuit risks, ensuring system safety.
Adaptability to Harsh Environments: Strong corrosion and low-temperature resistance, suitable for coastal and high-moisture areas.
|
Product Name |
Cable Sheath (HDPE Conduit) |
|
Brand |
HENAN LUKUANG TRADE |
|
Raw Materials |
PE80, PE100, PE4710 (mainly PE100 from well-known suppliers) |
|
Color Options |
Yellow, Black, customizable on demand |
|
Executive Standards |
ISO4427/AS/NZS 4130/BS EN 12201/SABS Standards |
|
Customization Service |
Support custom special specifications, accept OEM orders, and print customer logos on pipes |
|
Sample Supply |
Free samples available |
|
Packaging Standard |

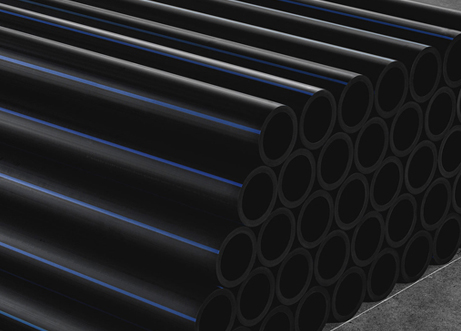

Standard export packaging; diameter <110mm can be coiled into rolls; diameter >110mm single length is 5.8 meters or 11.8 meters |
|
Minimum Order Quantity |
Negotiable |
|
Delivery Time |
Depends on order quantity; 20ft container: 7-10 days; 40ft container: 15-20 days |
|
Certifications |
ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications |
|
Warranty Period |
30-year warranty under normal use |
|
Payment Terms |
Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight |
|
Delivery Port |
Major domestic ports such as Chongqing, Qingdao, Tianjin, Shanghai, etc. |
|
Country of Origin |
China |

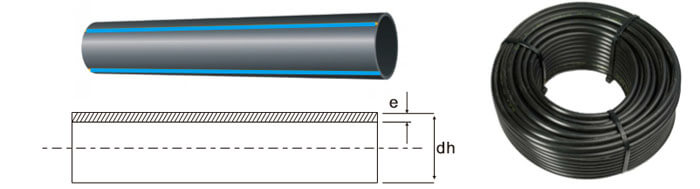

We offer HDPE pipes with diameters ranging from DN16mm to 1600mm.
| SDR41 PN4 | SDR33 PN5 | SDR26 PN6 | SDR21 PN8 | SDR17 PN10 | SDR13.6 PN12.5 | SDR11 PN16 | SDR9 PN20 | SDR7.4 PN25 | SDR6 PN32 | |||||||||||
| DN (mm) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3 | 0.12 |
| 20 | - | - | - | - | - | - | 1 | 0.06 | 1.2 | 0.07 | 1.5 | 0.09 | 2 | 0.11 | 2.3 | 0.13 | 3 | 0.16 | 3.4 | 0.18 |
| 25 | - | - | - | - | - | - | 1.2 | 0.09 | 1.5 | 0.12 | 2 | 0.15 | 2.3 | 0.16 | 3 | 0.21 | 3.5 | 0.24 | 4.2 | 0.28 |
| 32 | - | - | - | - | - | - | 1.5 | 0.15 | 2 | 0.19 | 2.4 | 0.24 | 3 | 0.27 | 3.6 | 0.32 | 4.4 | 0.38 | 5.4 | 0.45 |
| 40 | - | - | - | - | - | - | 2 | 0.26 | 2.4 | 0.29 | 3 | 0.36 | 3.7 | 0.42 | 4.5 | 0.5 | 5.5 | 0.6 | 6.7 | 0.7 |
| 50 | - | - | - | - | 1.8 | 0.29 | 2.4 | 0.36 | 3 | 0.45 | 3.7 | 0.54 | 4.6 | 0.66 | 5.6 | 0.78 | 6.9 | 0.93 | 8.3 | 1.08 |
| 63 | 1.8 | 0.36 | 2 | 0.39 | 2.4 | 0.47 | 3 | 0.57 | 3.8 | 0.71 | 4.7 | 0.87 | 5.8 | 1.04 | 7.1 | 1.25 | 8.6 | 1.46 | 10.3 | 1.69 |
| 75 | 1.9 | 0.45 | 2.3 | 0.54 | 2.7 | 0.63 | 3.6 | 0.81 | 4.5 | 1.01 | 5.6 | 1.23 | 6.8 | 1.46 | 8.4 | 1.75 | 10.3 | 2.08 | 12.5 | 2.43 |
| 90 | 2.3 | 0.64 | 2.8 | 0.78 | 3.3 | 0.93 | 4.3 | 1.16 | 5.4 | 1.45 | 6.7 | 1.76 | 8.2 | 2.11 | 10.1 | 2.53 | 12.3 | 2.99 | 15 | 3.51 |
| 110 | 2.7 | 0.93 | 3.4 | 1.16 | 4 | 1.37 | 5.3 | 1.74 | 6.6 | 2.15 | 8.1 | 2.6 | 10 | 3.13 | 12.3 | 3.76 | 15.1 | 4.47 | 18.3 | 5.22 |
| 125 | 3.1 | 1.22 | 3.9 | 1.5 | 4.5 | 1.74 | 6 | 2.25 | 7.4 | 2.74 | 9.2 | 3.35 | 11.4 | 4.06 | 14 | 4.87 | 17.1 | 5.76 | 20.8 | 6.74 |
| 140 | 3.5 | 1.52 | 4.3 | 1.86 | 5.1 | 2.21 | 6.7 | 2.81 | 8.3 | 3.44 | 10.3 | 4.2 | 12.7 | 5.06 | 15.7 | 6.09 | 19.2 | 7.23 | 23.3 | 8.45 |
| 160 | 4 | 1.97 | 4.9 | 2.4 | 5.8 | 2.87 | 7.7 | 3.69 | 9.5 | 4.5 | 11.8 | 5.48 | 14.6 | 6.64 | 17.9 | 7.94 | 21.9 | 9.42 | 26.6 | 11.03 |
| 180 | 4.4 | 2.46 | 5.5 | 3.04 | 6.5 | 3.61 | 8.6 | 4.64 | 10.7 | 5.69 | 13.3 | 6.96 | 16.4 | 8.4 | 20.1 | 10.04 | 24.6 | 11.91 | 29.9 | 13.94 |
| 200 | 4.9 | 3.02 | 6.2 | 3.81 | 7.2 | 4.44 | 9.6 | 5.75 | 11.9 | 7.02 | 14.7 | 8.53 | 18.2 | 10.36 | 22.4 | 12.42 | 27.4 | 14.73 | 33.2 | 17.21 |
| 225 | 5.5 | 3.82 | 6.9 | 4.74 | 8.1 | 5.68 | 10.8 | 7.26 | 13.4 | 8.9 | 16.6 | 10.83 | 20.3 | 13 | 25.2 | 15.72 | 30.8 | 18.61 | 37.4 | 21.79 |
| 250 | 6.2 | 4.79 | 7.7 | 5.88 | 9.1 | 6.99 | 11.9 | 8.89 | 14.8 | 10.91 | 18.4 | 13.34 | 22.7 | 16.12 | 27.9 | 19.32 | 34.2 | 22.98 | 41.5 | 26.87 |
| 280 | 6.9 | 5.94 | 8.6 | 7.35 | 10.1 | 8.71 | 13.4 | 11.18 | 16.6 | 13.7 | 20.6 | 16.72 | 25.4 | 20.21 | 31.3 | 24.28 | 38.3 | 28.82 | 46.5 | 33.71 |
| 315 | 7.7 | 7.46 | 9.7 | 9.32 | 11.4 | 11.02 | 15 | 14.1 | 18.7 | 17.35 | 23.2 | 21.19 | 28.6 | 25.58 | 35.2 | 30.72 | 43.1 | 36.48 | 52.3 | 42.66 |
| 355 | 8.7 | 9.49 | 10.9 | 11.78 | 12.9 | 14.05 | 16.9 | 17.86 | 21.1 | 22.09 | 26.1 | 26.87 | 32.2 | 32.47 | 39.7 | 39.01 | 48.5 | 46.25 | 59 | 54.19 |
| 400 | 9.8 | 12.03 | 12.3 | 15.01 | 14.5 | 17.83 | 19.1 | 22.72 | 23.7 | 27.91 | 29.4 | 34.07 | 36.3 | 41.23 | 44.7 | 49.49 | 54.7 | 58.75 | 66.7 | 68.95 |
| 450 | 11 | 15.17 | 13.8 | 18.9 | 16.3 | 22.52 | 21.5 | 28.81 | 26.7 | 35.36 | 33.1 | 43.16 | 40.9 | 52.21 | 50.3 | 62.66 | 61.5 | 74.32 | - | - |
| 500 | 12.3 | 18.89 | 15.3 | 23.31 | 18.1 | 27.74 | 23.9 | 35.56 | 29.7 | 43.7 | 36.8 | 53.25 | 45.4 | 64.42 | 55.8 | 77.22 | 67.7 | 97.19 | - | - |
| 560 | 13.7 | 23.52 | 17.2 | 29.34 | 20.3 | 34.84 | 26.7 | 44.51 | 33.2 | 54.74 | 41.2 | 66.81 | 50.8 | 80.7 | 62.2 | 96.43 | 75.7 | 121.9 | - | - |
| 630 | 15.4 | 29.75 | 19.3 | 37.01 | 22.8 | 43.99 | 30 | 56.24 | 37.4 | 69.33 | 46.3 | 84.75 | 57.2 | 102.25 | 70.3 | 125.86 | 85.1 | 154.82 | - | - |
| 710 | 17.4 | 37.86 | 21.8 | 47.04 | 25.7 | 55.89 | 33.9 | 71.52 | 42.1 | 87.97 | 52.2 | 107.28 | 64.5 | 129.97 | 79.3 | 161.88 | 95.9 | 195.82 | - | - |
| 800 | 19.6 | 48.01 | 24.5 | 59.58 | 29 | 71.11 | 38.1 | 90.58 | 47.4 | 111.55 | 58.8 | 136.09 | 72.6 | 175.59 | 89.3 | 210.68 | - | - | - | - |
| 900 | 22 | 60.55 | 27.6 | 75.47 | 32.6 | 89.82 | 42.9 | 114.77 | 53.3 | 141.11 | 66.2 | 172.29 | 81.7 | 222.3 | - | - | - | - | - | - |
| 1000 | 24.5 | 74.98 | 30.6 | 92.96 | 36.2 | 110.84 | 47.7 | 141.83 | 59.3 | 174.39 | 73.5 | 212.64 | 90.2 | 272.87 | - | - | - | - | - | - |
| 1200 | 29.4 | 107.97 | 36.7 | 133.73 | 43.5 | 159.84 | 57.2 | 203.39 | 70.6 | 248.56 | 88.2 | 326.06 | - | - | - | - | - | - | - | - |
| 1400 | 34.3 | 146.87 | 42.9 | 182.28 | 50.7 | 217.01 | 66.7 | 276.21 | 82.4 | 337.82 | 102.9 | 443.8 | - | - | - | - | - | - | - | - |
| 1600 | 39.2 | 191.8 | 49 | 237.89 | 58 | 283.79 | 76.2 | 360.37 | 94.1 | 440.55 | - | - | - | - | - | - | - | - | - | - |
Note: Special specifications are available upon request. Please contact us for further product information and pricing.
Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).
Corrosion-Resistant & Long-Lasting: Withstands harsh chemicals with no rust or aging. Service life exceeds 50 years, up to 70–100 years underground.
Reliable Electrical Insulation: Excellent insulation ensures safe, stable cable operation and reduces electrical risks.
Strong & Durable: High tensile strength and impact resistance for long-term performance in demanding conditions.
Eco-Friendly & Recyclable: Non-toxic, sustainable, and fully recyclable, meeting environmental standards.
Flexible Installation:Supports trenchless methods (jacking, lining, etc.), ideal for urban and restricted areas.
Rigid Yet Flexible: Combines strength with flexibility, reducing fittings and installation costs.

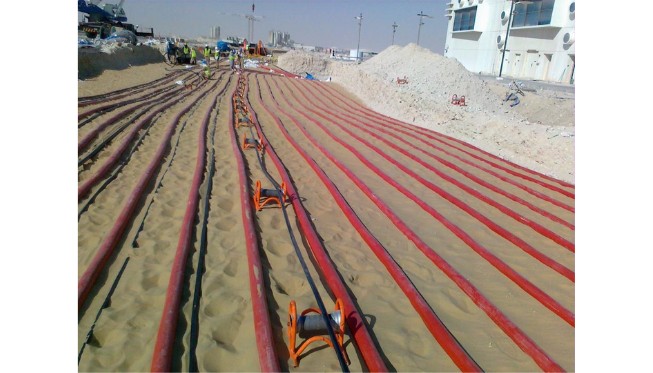

Fast & Easy Installation:Smooth inner surface for easy cable pulling; lightweight design improves efficiency.
Widely used in power, telecom, and infrastructure projects:

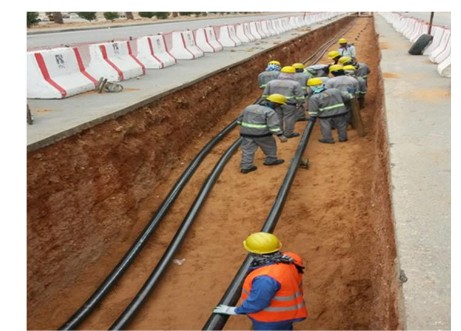

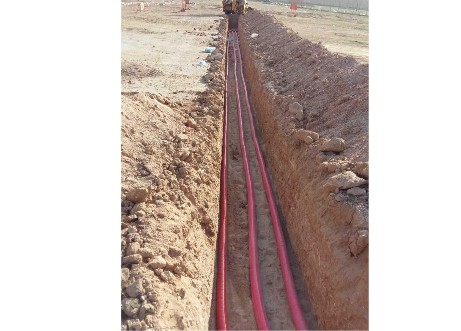

Urban Roads: Protects underground power and street lighting cables
Residential Areas: Ideal for telecom and electrical conduit systems
Landscaping Projects: Suitable for parks, gardens, and public spaces
Industrial Facilities: Ensures stable power and communication in factories
Other Uses: Smart infrastructure, outdoor lighting, and cable pre-installation
For specification parameters, product quotes, free samples or customized solutions, please feel free to contact us at any time, and we will provide you with professional and efficient service support!
