Injection-molded HDPE butt fusion 45° elbows are designed for HDPE piping systems, offering superior quality and reliable performance with a 30-year warranty.
Competitive wholesale pricing, regular sizes in stock, and fast delivery available. Contact us today for more details and a quick quotation.
WhatsApp: 8615515833787 WeChat: 15515833787Size Range: DN63–DN800mm; DN75–DN630mm (customizable)
Pressure Rating: SDR11 (PN16), SDR13.6 (PN12.5), SDR17 (PN10), SDR21 (PN6), SDR26 (PN6)
Material: High-quality PE80 or PE100
Supply Capacity: Up to 3 × 40ft containers per week
Material: High-quality virgin PE80 or PE100, no recycled material, ensuring stable performance
Certifications: ISO 9001, ISO 14001, OHSAS 18001, CE, BS EN 12001 compliant

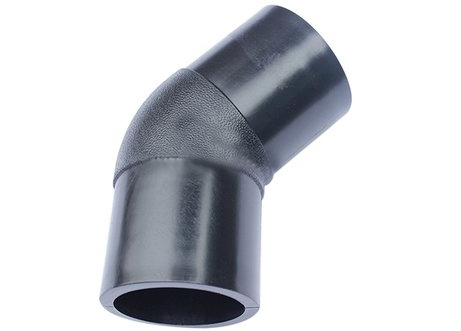

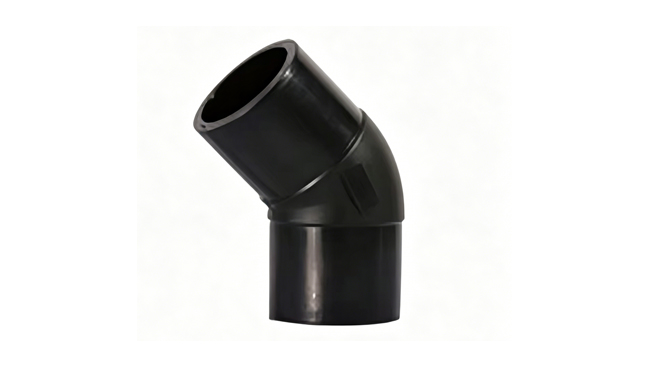

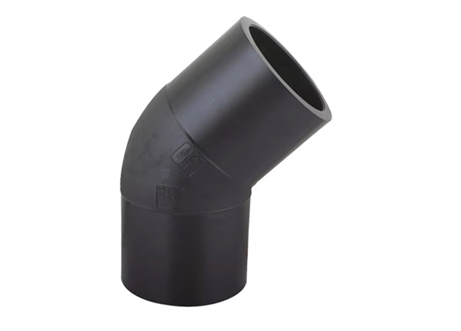

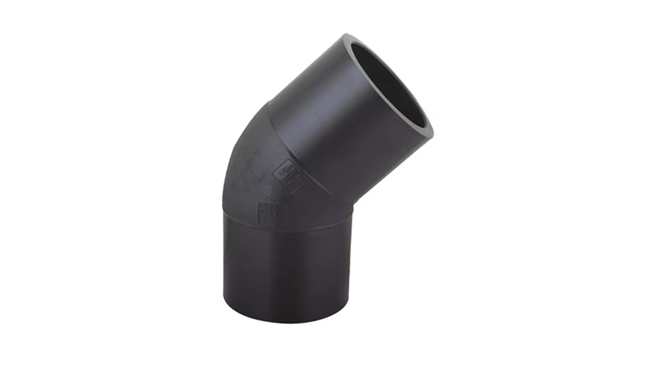

HDPE butt fusion 45° elbows are thermal fusion fittings used to change flow direction in piping systems. Connected by butt fusion, they offer excellent corrosion resistance and pressure performance, making them ideal for water supply and other applications.
Pipe Connection: Connects pipes of compatible systems to ensure continuous pipeline operation
Flow Direction Control: Adjusts pipe angle to guide and regulate fluid flow efficiently
Stress Reduction: Helps absorb thermal expansion, contraction, and vibration, protecting the pipeline system
Butt fusion is a widely used and reliable connection method for polyethylene pipelines, providing joint strength equal to the pipe itself with excellent sealing and long-term durability.
|
Product name |
Butt Fusion 45 Degree Elbow |
|
Sizes available |
DN75-630mm |
|
SDR rating |
SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41 |
|
Material |
Top quality new PE80 or PE100 raw material |
|
Colors available |
Black or blue, or as per request |
|
Standards follow to |
ISO4427/ AS/ NZS 4130/ BS EN 12201/ SABS standard |
|
Samples available |
Available |

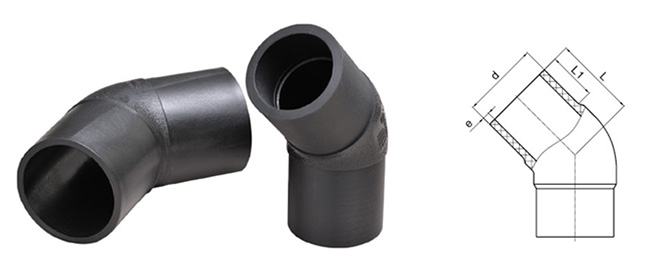

| d | e(SDR11) | e(SDR17) | L1 | L |
| 63 | 5.8 | － | 64 | 85 |
| 90 | 8.2 | 5.4 | 80 | 110 |
| 110 | 10 | 6.6 | 84 | 125 |
| 160 | 14.6 | 9.5 | 100 | 155 |
| 200 | 18.2 | 11.9 | 115 | 166 |
| 225 | 20.5 | 13.4 | 123 | 180 |
| 250 | 22.7 | 14.8 | 132 | 200 |
| 315 | 28.6 | 18.7 | 153 | 240 |
| 355 | 32.3 | 21.1 | 167 | 285 |
| 400 | 36.4 | 23.7 | 240 | 275 |
| 450 | 40.9 | 26.7 | 260 | 285 |
We supply HDPE butt fusion fittings in sizes DN75–DN630mm (including elbows, tees, etc.), customizable to project requirements. Made from high-quality PE80/PE100 materials, they are suitable for water, oil, and gas pipelines. Fully compliant with international standards and export-ready with reliable quality.
Safe & Hygienic: Non-toxic, no scaling, suitable for potable water systems
Excellent Corrosion Resistance: Resistant to various chemical media with strong fusion joints and leak-proof performance
High Toughness: ≥500% elongation, excellent resistance to settlement, impact, and rapid crack propagation
Easy Installation: Simple operation, shortens construction time; smooth inner wall ensures high flow efficiency
Cost-Effective & Durable: Low installation and maintenance cost, service life over 70 years, recyclable and eco-friendly
