Injection-molded HDPE stub flanges / stub ends / flange adapters are designed for HDPE piping systems, available in sizes from DN63 to DN1200mm with multiple diameter options. They offer excellent quality with a 30-year warranty, highly competitive wholesale pricing, and regular sizes in stock for fast delivery.
If you are interested in our HDPE stub flanges, please feel free to contact us for more details and a quick quotation.
WhatsApp: 8615515833787 WeChat: 15515833787Product Name: HDPE Stub Flange / Stub End / Flange Adaptor
Size Range: DN63–DN1200mm (customizable, standard sizes DN75–DN630mm)
Pressure Rating: SDR11 (PN16), SDR13.6 (PN12.5), SDR17 (PN10), SDR21 (PN6), SDR26 (PN6)
SDR Options: SDR11, SDR13.6, SDR17, SDR21, SDR26, SDR33, SDR41
Material: High-quality virgin PE80 or PE100
Color Options: Black, Blue, or customized upon request
Standards: ISO 4427, AS/NZS 4130, BS EN 12201, SABS compliant
Supply Capacity: Up to 3 × 40ft containers per week
Certifications: ISO 9001, ISO 14001, OHSAS 18001, CE, BS EN 12001
Electrofusion HDPE fittings are designed to join polyethylene pipes by using electric current to heat and melt the fitting material, creating a permanent fusion bond. This electrofusion process ensures that the joint strength is equal to or even higher than the pipe itself, providing a highly secure and reliable connection.

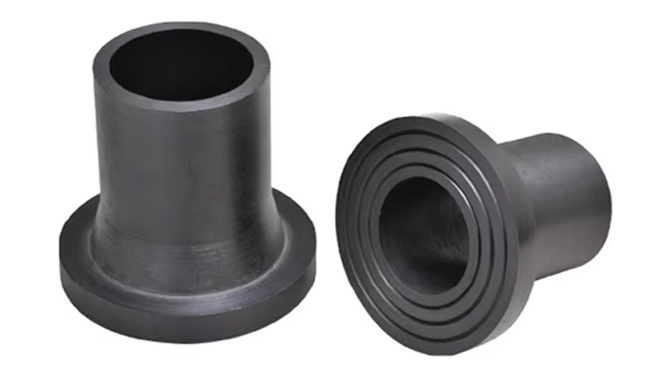

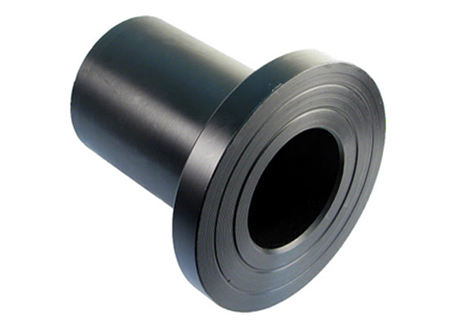

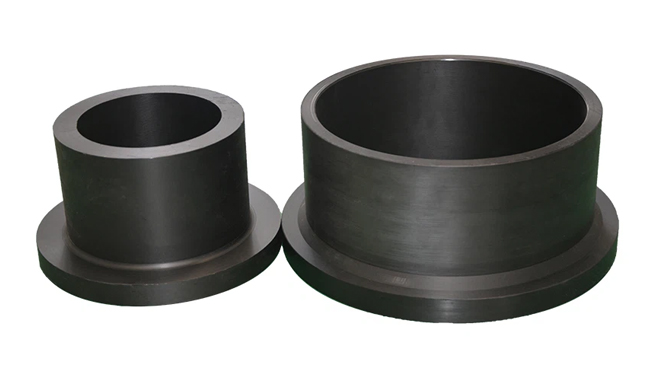

HDPE stub flanges are pipe connection accessories used to join different pipeline systems. By combining flanges, bolts, and nuts, they enable secure connections between HDPE pipes and other materials such as steel pipes, valves, and pumps. They are commonly used with HDPE corrugated pipes as well. The use of HDPE stub flanges simplifies installation, improves connection reliability, and enhances the overall performance of the pipeline system.
Flanged Connection Solution: HDPE stub flanges enable reliable flange-to-flange pipe connections, ensuring stable integration within pipeline systems.
Excellent Material Performance: Utilizing HDPE’s outstanding corrosion resistance, abrasion resistance, and thermal stability, they are widely applied across various industrial fields.
Suitable for High-Pressure Systems: Capable of withstanding higher operating pressures, making them ideal for circulating water transmission and similar demanding applications.
Easy and Secure Installation: Simple connection method with strong joint performance, ensuring safe and efficient assembly.
Flexible Compatibility: Can be adapted to different pipe diameters, providing convenient connection solutions for complex pipeline layouts.
Long Service Life & Impact Resistance: Excellent durability and shock resistance ensure reliable long-term performance in circulating water systems and other continuous operation environments.
|
Product name |
HDPE Stub Flange / Stub End / Flange Adaptor |
|
Sizes available |
DN63-1200mm |
|
SDR ratings |
SDR11，SDR13.6，SDR17，SDR21，SDR26，SDR33, SDR41 |
|
Material |
Top quality virgin PE80 or PE100 raw material |
|
Colors available |
Black or blue, or as per request |
|
Standards |
SO4427/ AS/ NZS 4130/ BS EN 12201/ SABS standard |
|
Samples available |
available |

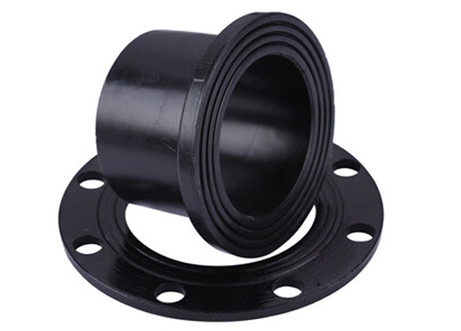

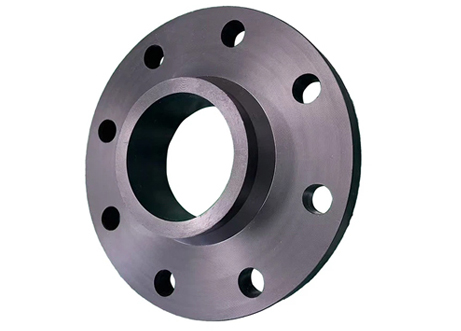

During installation, HDPE stub flanges are used to connect two pipeline sections by aligning the pipes and securing them with steel flanges, bolts, and nuts. This method provides a strong and stable mechanical connection, and sealing performance can be further enhanced by adding gaskets to effectively prevent leakage.
In addition, HDPE fusion technologies such as electrofusion and butt fusion further improve joint reliability and connection quality, ensuring long-term safe and stable operation of the pipeline system.

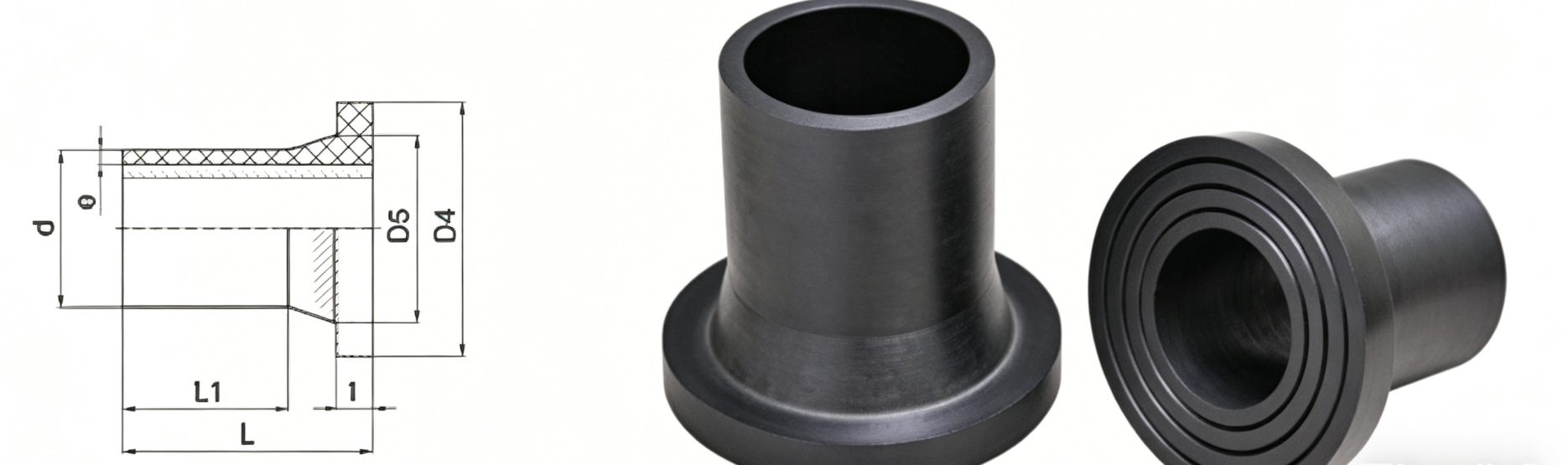

| d | D4 | e | L1 | L | D5 | t |
| 50 | 88 | 4.6 | ≧55 | 86 | 59 | ≧12 |
| 63 | 102 | 5.8 | ≧63 | 96 | 75 | ≧14 |
| 75 | 122 | 6.8 | ≧70 | 110 | 86 | ≧16 |
| 90 | 138 | 8.2 | ≧79 | 127 | 105 | ≧17 |
| 110 | 158 | 10 | ≧82 | 127 | 125 | ≧18 |
| 125 | 158 | 11.4 | ≧87 | 130 | 132 | ≧18 |
| 140 | 188 | 12.7 | ≧92 | 142 | 150 | ≧25 |
| 160 | 212 | 14.6 | ≧98 | 167 | 175 | ≧25 |
| 180 | 212 | 16.4 | ≧105 | 159 | 180 | ≧28 |
| 200 | 268 | 18.2 | ≧112 | 170 | 218 | ≧31 |
| 225 | 268 | 20.5 | ≧120 | 176 | 235 | ≧32 |
| 250 | 320 | 22.7 | ≧129 | 194 | 270 | ≧35 |
| 280 | 320 | 25.4 | ≧139 | 210 | 285 | ≧35 |
| 315 | 370 | 28.6 | ≧150 | 227 | 325 | ≧35 |
| 355 | 430 | 32.3 | ≧164 | 224 | 373 | ≧39 |
| 400 | 482 | 36.4 | ≧179 | 250 | 426 | ≧40 |
| 450 | 530 | 40.9 | ≧195 | 280 | 475 | ≧53 |
| 500 | 585 | 45.5 | ≧212 | 302 | 530 | ≧55 |
| 560 | 645 | 50.9 | ≧235 | 315 | 615 | ≧55 |
| 630 | 690 | 57.3 | ≧255 | 340 | 642 | ≧57 |
| 710 | 800 | 64.5 | ≧190 | 275 | 737 | ≧57 |
| 800 | 905 | 72.6 | ≧150 | 240 | 840 | ≧60 |
| 900 | 1005 | 53.3 | ≧220 | 330 | 944 | ≧60 |
| 1000 | 1100 | 59.3 | ≧260 | 395 | 1047 | ≧65 |
| 1200 | 1330 | 57.2 | ≧260 | 400 | 1245 | ≧70 |

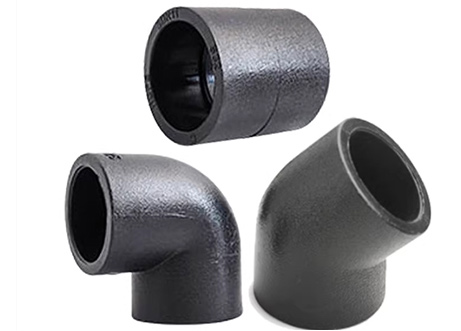

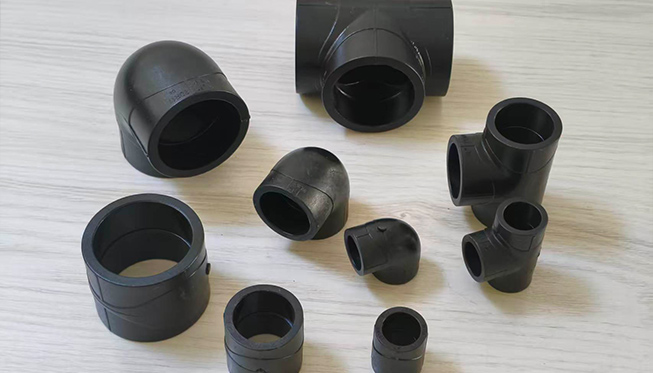

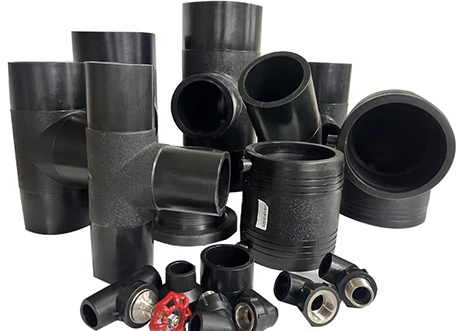

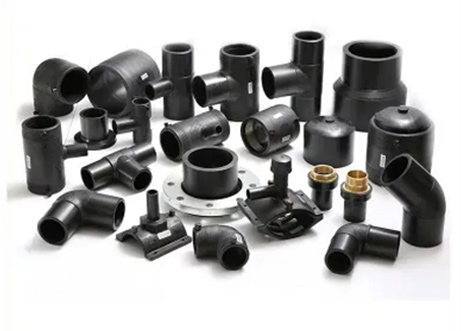

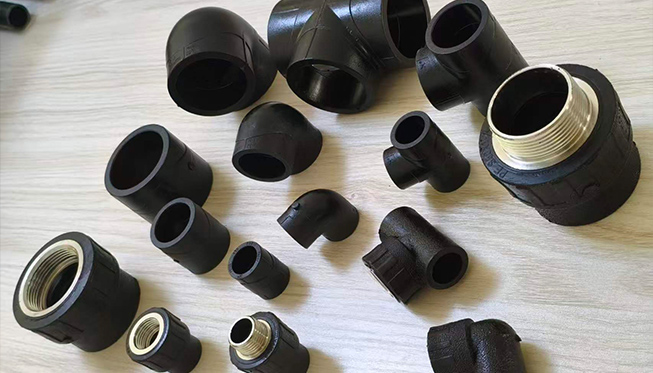

We supply a full range of HDPE butt fusion fittings in sizes from DN75mm to DN1200mm, including flanges, equal and reducing tees, ball valves, couplings, 45° and 90° elbows, etc. Custom production is available. All products are made from high-quality virgin PE80 or PE100 materials and are widely used in HDPE water, oil, and gas pipeline systems. Our fittings fully comply with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS standards.
Non-toxic & Hygienic: Safe and odorless material, suitable for potable water systems, with no scaling and improved water quality.
Excellent Corrosion Resistance: Resistant to a wide range of chemical media, ideal for harsh environments.
High Connection Strength: Electrofusion/butt fusion joints provide strength equal to or higher than the pipe itself.
High Toughness: Over 500% elongation, excellent adaptability to ground movement and strong seismic resistance.
Outstanding RCP Resistance: Effectively prevents rapid crack propagation under pressure fluctuations or external impact.
Flexible & Scratch Resistant: Durable and easy to handle during installation.
High Flow Efficiency: Low friction and smooth inner surface ensure strong flow capacity.
Easy Installation: Simple and fast installation reduces construction time and cost.
Cost-Effective System: Low installation and maintenance cost, reducing overall project investment.
Long Service Life: Underground service life can exceed 70 years.
Eco-Friendly & Recyclable: Fully recyclable material supporting sustainable engineering.
We provide professional customization, specification consultation, and sample testing services for HDPE stub flanges.
For product details, pricing, and delivery time, please feel free to contact us. We will respond within 24 hours with a tailored solution for your project.
