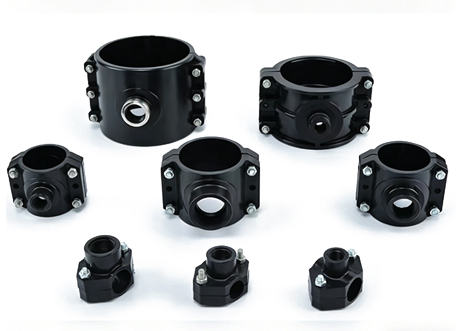

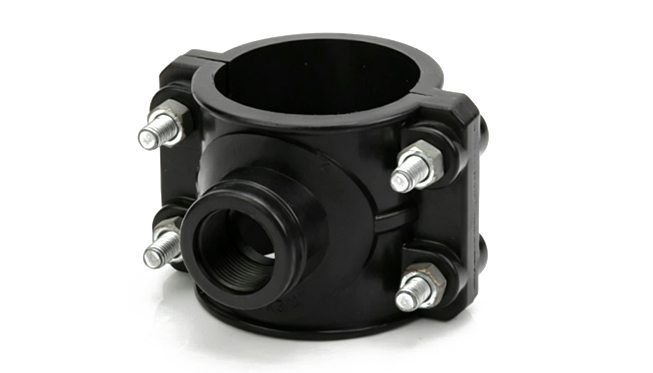

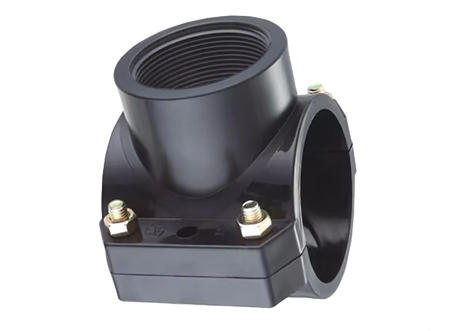

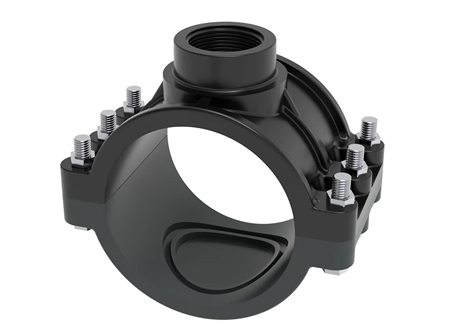

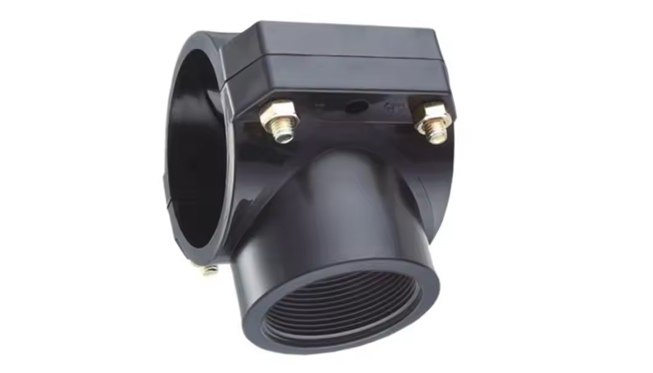

HDPE Clamp Saddle (PP Clamp Saddle)-Henan LuKuang Trading Co., Ltd.

Core Parameters

Size: DN20–250 mm (standard DN25–250 mm, customizable according to customer requirements)

Pressure Rating: PN16 bar for 20–63 mm sizes, PN10 bar for 75–110 mm sizes, overall compliant with PN10 standard

Raw Materials: Saddle body made of high-quality PP-B (black polypropylene copolymer); nuts and bolts made of galvanized steel; O-ring gasket made of nitrile rubber; reinforcement ring made of AISI 430 stainless steel

Supply Capacity: 3 × 40 ft containers per week, capable of meeting large-volume procurement demands

Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12001 international certifications, fully compliant with EN 712/713/715/911 and ISO 3501/3503/3458/3459 standards
HDPE Saddle Clamp (PP Saddle) is a key reinforced branch connection fitting in HDPE piping systems, designed for safe and efficient connection between the main pipe and branch pipe. It can directly replace traditional fittings such as reducing tees and reinforcement plates, making it suitable for high-pressure and large-diameter pipeline applications.

It adopts a mechanical compression connection method, requiring no fusion welding equipment or heating process. Installation is quick and simple, significantly reducing construction complexity and overall cost. The product is made of PP-B polypropylene copolymer body, combined with galvanized steel fasteners, NBR O-rings, and stainless steel reinforcement rings, ensuring a compact and stable structure. The smooth inner surface reduces flow resistance, and the standardized design allows full compatibility with various HDPE piping systems, offering excellent corrosion resistance and long service life.

Compression Connection Principle

PP compression connection is a highly efficient mechanical joining method. Its core principle is to apply physical pressure to compress the NBR (nitrile rubber) O-ring, allowing it to tightly seal the interface and achieve reliable hydraulic sealing and precise alignment. The entire process requires no heat fusion or welding, making installation simple and eliminating the need for specialized equipment or skilled operators.

This method enables fast installation while effectively preventing leakage risks. It is suitable for both normal temperature and high-pressure working conditions, and is widely used in water supply and irrigation systems where high sealing performance is required.

Brief Detail

Basic Product Information	Details
Product Name	HDPE Clamp Saddle, PP Clamp Saddle
Optional Sizes	DN20-250mm (regular DN25-250mm, customizable)
Pressure Rating (20℃)	PN10 bar; 20-63mm specifications can reach PN16 bar
Material Combination	Body: Black polypropylene copolymer; Nuts and bolts: Galvanized steel; O-rings: Nitrile rubber; Reinforcement rings: AISI 430 stainless steel
Optional Colors	Regular black and blue, customizable according to customer requirements
Implementation Standards	EN 712/713/715/911; ISO 3501/3503/3458/3459; Threaded connection type complies with ISO 7 and DIN 2999 standards
Sample Provision	A small number of free samples can be provided for customer testing and confirmation
Connection Method	Mechanical compression connection, achieving perfect hydraulic sealing by applying physical force, no hot melting required, fast and simple installation
Warranty Period	The normal service life is 30 years, with long-term quality guarantee
Application Scenarios	Widely used in water supply and irrigation fields, can be installed on HDPE pipelines complying with ISO 11922, DIN 8072/8074 and UNE 53131 standards, suitable for branch pipe connection of high-pressure, high-temperature, large-diameter and thick-walled pipelines
Packaging Method	Carton packaging, packed separately by specification, convenient for transportation and storage
Minimum Order Quantity	Negotiable, flexibly meeting different procurement needs
Production Cycle	Depends on the order quantity, about 15-20 days for 20ft container, about 25-30 days for 40ft container
Payment Terms	Telegraphic Transfer (T/T) or Sight Letter of Credit (L/C)
FOB Ports	Qingdao, Tianjin, Shanghai, Chongqing
Country of Origin	China
Marking Service	Customer logos can be printed on the products to enhance brand recognition

Product Basic Information Table

PP compression elbows are supplied from DN20-DN110mm.

Specification	Qty/ctn	Package size			G.W	N.W.
(mm)	(PCS)	(m)	(m)	(m)	(KGS)	(KGS)
PP clamp saddle
25×1/2″	200	0.44	0.33	0.33	30.00	29.40
25×3/4″	200	0.44	0.33	0.33	30.00	29.40
32×1/2″	200	0.44	0.33	0.33	30.20	29.60
32×3/4″	200	0.44	0.33	0.33	30.20	29.60
32×1″	200	0.44	0.33	0.33	30.20	29.60
40×1/2″	160	0.44	0.33	0.33	30.00	29.40
40×3/4″	160	0.44	0.33	0.33	30.20	29.60
40×1″	160	0.44	0.33	0.33	30.40	29.80
50×1/2″	150	0.44	0.33	0.33	29.60	29.00
50×3/4″	150	0.44	0.33	0.33	29.80	29.20
50×1″	150	0.44	0.33	0.33	30.00	29.40
63×1/2″	100	0.44	0.33	0.33	27.40	26.80
63×3/4″	100	0.44	0.33	0.33	27.60	27.00
63×1″	100	0.44	0.33	0.33	27.80	27.20
75×3/4″	80	0.44	0.33	0.33	28.40	27.80
75×1″	80	0.44	0.33	0.33	28.60	28.00
75×1-1/2″	80	0.44	0.33	0.33	28.80	28.00
90×3/4″	50	0.58	0.35	0.33	25.60	28.20
90×1″	50	0.58	0.35	0.33	25.80	25.00
90×1-1/2″	50	0.58	0.35	0.33	26.00	25.20
90×2″	50	0.58	0.35	0.33	26.20	25.40
110×1/2″	30	0.58	0.35	0.33	25.30	24.60
110×3/4″	30	0.58	0.35	0.33	25.50	24.80
110×1″	30	0.58	0.35	0.33	25.70	25.00
110×1-1/2″	30	0.56	0.44	0.33	25.90	25.20
110×2″	30	0.56	0.44	0.33	26.20	25.40
110×3″	30	0.56	0.44	0.33	26.50	25.70
125×1″	10	0.56	0.44	0.33	26.50	25.70
125×1-1/4″	10	0.56	0.44	0.33	26.50	25.70
125×1-1/2″	10	0.56	0.44	0.33	26.50	25.70
125×2″	10	0.56	0.44	0.33	26.50	25.70
160×3/4″	6	0.56	0.44	0.33	26.50	25.70
160×1″	6	0.56	0.44	0.33	26.50	25.70
160×1-1/4″	6	0.56	0.44	0.33	26.50	25.70
160×1-1/2″	6	0.56	0.44	0.33	26.50	25.70
160×2″	6	0.56	0.44	0.33	26.50	25.70
160×3″	6	0.56	0.44	0.33	26.50	25.70
200×3/4″	4	0.56	0.44	0.33	26.50	25.70
200×1″	4	0.56	0.44	0.33	26.50	25.70
200×1-1/4″	4	0.56	0.44	0.33	26.50	25.70
200×1-1/2″	4	0.56	0.44	0.33	26.50	25.70
200×2″	4	0.56	0.44	0.33	26.50	25.70
200×3″	4	0.56	0.44	0.33	26.50	25.70
250×3/4″	3	0.56	0.44	0.33	26.50	25.70
250×1″	3	0.56	0.44	0.33	26.50	25.70
250×2″	3	0.56	0.44	0.33	26.50	25.70
250×3″	3	0.56	0.44	0.33	26.50	25.70
250×4″	3	0.56	0.44	0.33	26.50	25.70

Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).

Product Advantages

Fast Installation: Mechanical compression connection, no fusion welding required. Installation can be completed in minutes, saving time and labor costs.

Reliable Sealing: High-quality NBR O-ring ensures strong hydraulic sealing and prevents leakage in various applications.

Long Service Life: Made of PP-B and stainless steel materials, corrosion-resistant and anti-aging, with up to 30 years service life.

Standard Compatibility: Fully standardized design, compatible with all major HDPE piping systems.

Eco-Friendly & Safe: Non-toxic and odorless materials, suitable for potable water and irrigation systems.
