HDPE Electrofusion Equal Tee

PE100 Equal Tee for Reliable HDPE Pipeline Branch Connections

HDPE Electrofusion Equal Tee is designed to create a 90-degree branch connection in HDPE pipeline systems. All three outlets have the same nominal outside diameter, making this fitting ideal for dividing, combining or extending flow paths in water, gas, irrigation, industrial and municipal pipe networks.

WhatsApp: 8615515833787 WeChat: 15515833787
Send Email Get A Quote

Core Parameters

  • Size – DN25-500 mm (can be customized).

    Pressure rating : SDR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN6 bar, SDR26-PN6 bar.

    Raw materials:PE80 or PE100 materials.

    Supply capacity: 3 × 40 feet per week container.

    Certificate:ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 certification.

    The fitting contains embedded resistance heating coils in each fusion zone. When connected to a compatible electrofusion control unit, the coils generate heat and fuse the inner surface of the fitting with the outer surface of the HDPE pipes. After the specified cooling time, the joint forms a durable, leak-tight and corrosion-resistant connection.


    Manufactured from high-quality PE80 or PE100 material, our electrofusion equal tees are available in multiple diameters, SDR ratings and customized configurations. Custom colours, barcode labels, packaging and OEM branding are available on request.

    Factory pricing. Global compliance. Ready to supply. Get your quote.

    1

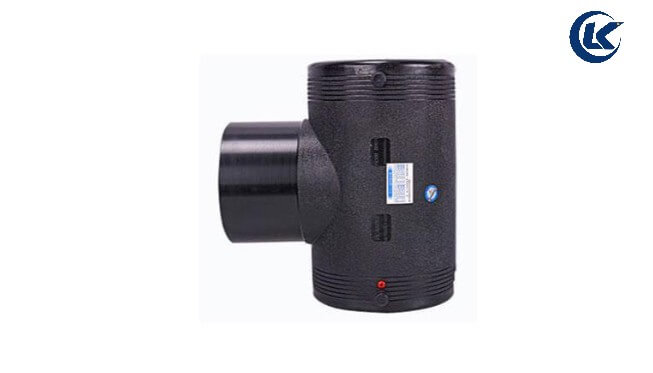

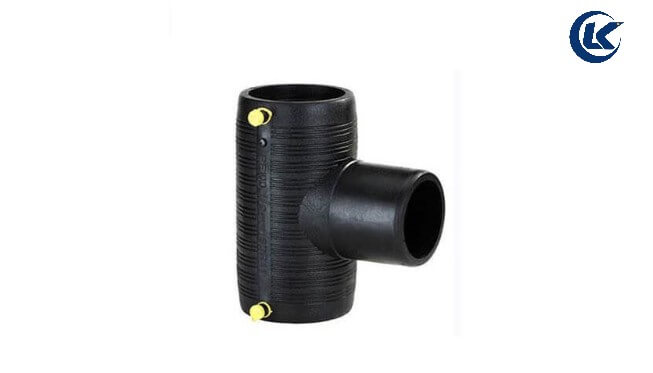

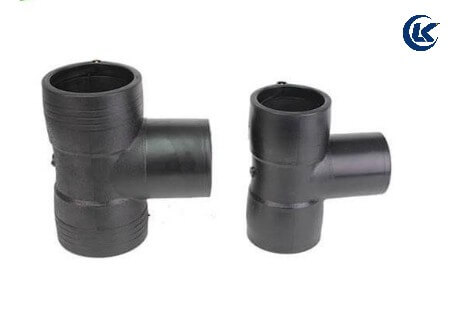

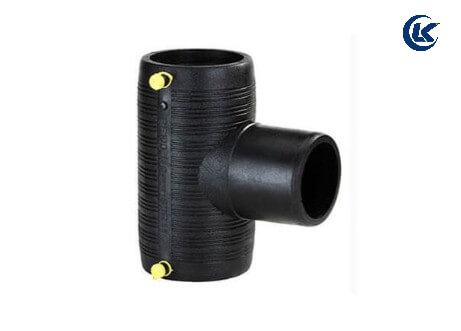

  • An HDPE Electrofusion Equal Tee is a three-way pipe fitting with three outlets of the same nominal diameter. It is used to create a T-junction between three HDPE pipes, allowing a pipeline to branch at 90 degrees without changing pipe diameter.


    Equal tees are commonly used in municipal water networks, irrigation systems, gas distribution lines, industrial pipe installations and underground utility projects. They provide a compact alternative to assembling multiple fittings and help reduce the total number of pipeline joints.


    During installation, each pipe end is prepared by cutting, scraping and cleaning the fusion zone. The pipes are inserted into the tee sockets and secured with alignment clamps. The electrofusion control unit then supplies the required fusion energy through the fitting terminals. After heating and cooling, the pipe and fitting materials form a homogeneous fusion joint.

    2
  • 3
  • 4
  • 5



Product Features

    • ✅Creates a 90° branch connection in HDPE pipeline systems
    • ✅Three equal-diameter electrofusion socket outlets
    • ✅Suitable for dividing, combining or extending pipeline routes
    • ✅PE80 or PE100 material available
    • ✅Embedded resistance heating coils for controlled fusion
    • ✅Strong and leak-tight connection when installed correctly
    • ✅Corrosion resistant for underground and harsh environments
    • ✅Suitable for water, gas, irrigation and industrial applications
    • ✅Black is standard; yellow is available for gas applications on request
    • ✅Barcode, batch marking and traceability label available on request
    • ✅Customized dimensions, labels and export packaging available

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Technical Specifications

Item Specification
Product name HDPE Electrofusion Equal Tee
Connection type Electrofusion socket × socket × socket
Configuration Three equal-diameter outlets
Standard size range DN/OD 32–200 mm
Extended size range DN/OD 25–500 mm, subject to confirmation
Material PE80 or PE100
Standard colour Black
Optional colour Yellow or customized colour
SDR options SDR11, SDR13.6, SDR17, SDR21 and SDR26, subject to configuration
Pressure rating Depends on fitting SDR, connected pipe SDR, medium, operating temperature and local regulations
Water standards ISO 4427-3 / EN 12201-3, where applicable
Gas standards ISO 4437-3 / EN 1555-3, where applicable
Additional standard AS/NZS 4129, where applicable
Traceability Barcode, batch number and product label available on request
Sample Available on request
Packaging Standard export packaging or customized packaging

Typical Size Combinations

d D1 L L1 H h
32 48 120 40 81 51
40 58 139 42 90 54
50 65 160 48 104 64
63 88 180 58 125 68
75 99 198 67 130 70
90 116 230 70 159 89
110 141 271 76 181 96
160 198 355 95 212 103
200 242 414 110 254 118

Note: Special specifications are available upon request. Please contact us for further product information and pricing.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Applications

HDPE Electrofusion Equal Tees are suitable for:

  • ✅Municipal water-supply and distribution systems
  • ✅Natural-gas distribution pipelines
  • ✅Agricultural irrigation networks
  • ✅Industrial liquid-transfer systems
  • ✅Mining and slurry pipelines
  • ✅Wastewater and drainage applications
  • ✅Underground utility and infrastructure projects
  • ✅Pipeline extension, branch and service connections
  • ✅HDPE pipe repair and modification projects



Installation Guidelines



  • Installation should be performed by trained personnel using compatible electrofusion equipment.

    1. 1. Confirm that the tee size, pipe SDR and pressure requirement are correct.
    2. 2. Cut all three pipe ends square and remove burrs.
    3. 3. Mark the required insertion depth on each pipe.
    4. 4. Scrape the oxidation layer from the complete fusion area using a suitable scraper.
    5. 5. Clean and dry the prepared pipe surfaces using approved cleaning materials.
    6. 6. Insert all three pipes fully into the tee sockets.
    7. 7. Secure the assembly using suitable alignment clamps.
    8. 8. Connect the fitting terminals to the electrofusion control unit.
    9. 9. Scan the fitting barcode or enter the specified fusion parameters.
    10. 10 Do not move, load or pressure-test the connection until the required cooling time has elapsed.



Why Choose Our HDPE Electrofusion Equal Tee?



  • ✅Creates a reliable equal-diameter pipeline branch
  • ✅Reduces the need for multiple fittings
  • ✅PE80 and PE100 material options
  • ✅Controlled electrofusion connection with embedded heating coils
  • ✅Suitable for water, gas, irrigation and industrial applications
  • ✅Corrosion-resistant solution for buried HDPE pipelines
  • ✅Custom size, colour, label and packaging service available
  • ✅Related products available, including couplings, reducers, reducing tees, elbows, end caps and flange adaptors



Frequently Asked Questions



What is an HDPE electrofusion equal tee?

It is a three-way electrofusion fitting with three outlets of the same diameter, used to create a 90-degree branch connection in HDPE pipe systems.



What is the difference between an equal tee and a reducing tee?

An equal tee has three outlets of the same diameter. A reducing tee has two same-diameter main outlets and one smaller branch outlet.



Can this product be used for gas pipelines?

Yes, provided the selected material, SDR, pressure rating and applicable gas standards meet project requirements.



What equipment is needed for installation?

A compatible electrofusion control unit, pipe cutter, scraper, approved cleaning materials and alignment clamps are required.



Can you provide customized products?

Yes. Please send the required diameter, SDR, working pressure, application, standard, quantity and destination port.



Request a Quote



Please provide the following information for an accurate quotation:

  • ✅Required equal-tee diameter
  • ✅Pipe SDR and wall thickness
  • ✅Application: water, gas, irrigation or industrial use
  • ✅Material requirement: PE80 or PE100
  • ✅Working pressure and required standard
  • ✅Quantity and destination port
  • ✅Colour, barcode, label and packaging requirements

Contact us today for drawings, samples, technical information and pricing.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).
