PE100 Reducing Tee for Reliable HDPE Branch Connections

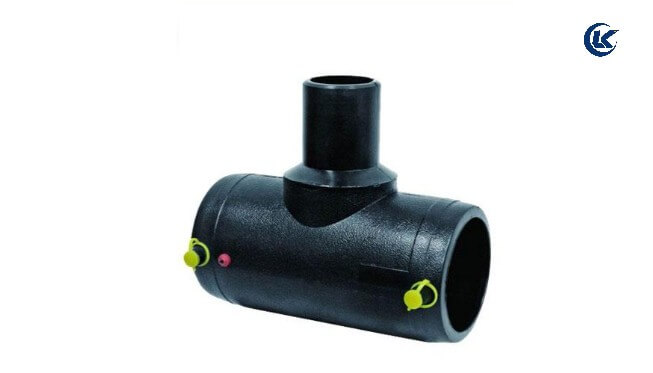

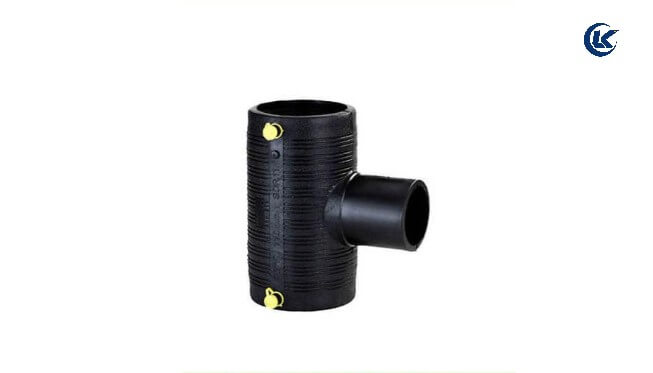

HDPE Electrofusion Reducing Tee is designed to create a 90-degree branch connection from a main HDPE pipeline to a smaller-diameter outlet pipe. It is widely used in water supply, gas distribution, irrigation, industrial, mining and municipal pipeline systems.
WhatsApp: 8615515833787 WeChat: 15515833787Size – DN25-500 mm (can be customized).
Pressure rating : SDR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN6 bar, SDR26-PN6 bar.
Raw materials:PE80 or PE100 materials.
Supply capacity: 3 × 40 feet per week container.
Certificate:ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 certification.
The fitting has two equal-size main-run sockets and one reduced branch socket. Embedded resistance heating coils inside each fusion zone generate heat when connected to a compatible electrofusion control unit. This fuses the fitting and HDPE pipe surfaces together to form a durable, leak-tight and corrosion-resistant connection after cooling.
Manufactured from high-quality PE80 or PE100 material, our electrofusion reducing tees are available in a wide range of main-run and branch diameter combinations. Customized sizes, colours, barcode labels, packaging and OEM branding are available on request.
Factory pricing. Global compliance. Ready to supply. Get your quote.

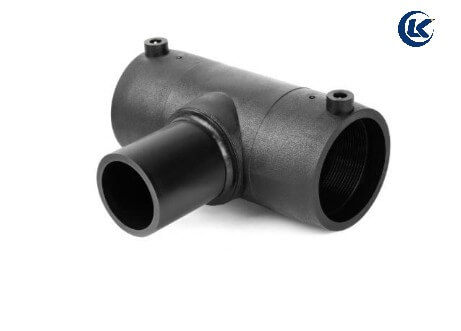

An HDPE Electrofusion Reducing Tee is a three-way fitting used to connect a smaller branch line to a larger HDPE main line. The two straight-through outlets are the same nominal diameter, while the branch outlet is smaller.
This fitting is commonly used when a distribution line, service connection, irrigation branch or process line must be taken from a main pipeline without using a separate reducer and equal tee. Its compact design helps simplify pipeline layouts and reduces the number of joints required.
During installation, all pipe surfaces in the fusion zones are scraped, cleaned, dried and inserted into the fitting to the specified depth. The electrofusion control unit supplies the fusion energy through the fitting terminals. Once the heating and cooling cycles are complete, the pipe and fitting materials form a homogeneous fusion joint.
| Item | Specification |
| Product name | HDPE Electrofusion Reducing Tee |
| Connection type | Electrofusion socket × socket × socket |
| Configuration | Equal-diameter main run with reduced branch outlet |
| Main size range | DN/OD 25–500 mm, subject to available configurations |
| Branch outlet | Reduced diameter, according to required pipe combination |
| Material | PE80 or PE100 |
| Standard colour | Black |
| Optional colour | Yellow or customized colour |
| SDR options | SDR11, SDR13.6, SDR17, SDR21 and SDR26, subject to configuration |
| Pressure rating | Depends on fitting SDR, connected pipe SDR, medium, operating temperature and local regulations |
| Water standards | ISO 4427 / EN 12201, where applicable |
| Gas standards | ISO 4437 / EN 1555, where applicable |
| Additional standard | AS/NZS 4129, where applicable |
| Traceability | Barcode, batch number and product label available on request |
| Sample | Available on request |
| Packaging | Standard export packaging or customized packaging |
| Main Run × Branch (mm) | Application Example |
| 32 × 20 | Small service branch |
| 50 × 25 | Irrigation or service outlet |
| 63 × 32 | Water-distribution branch |
| 90 × 63 | Medium pipeline branch |
| 110 × 63 | Utility or irrigation branch |
| 160 × 90 | Main-line branch connection |
| 200 × 110 | Industrial or municipal branch |
| 315 × 160 | Large pipeline branch |
Note: Special specifications are available upon request. Please contact us for further product information and pricing.
HDPE Electrofusion Reducing Tees are suitable for:
Installation should be completed by trained personnel using compatible electrofusion equipment.
An equal tee has three outlets of the same diameter. A reducing tee has two same-diameter main outlets and one smaller branch outlet.
Yes, provided that the selected material, SDR, pressure rating and applicable gas standard meet the project requirements.
Barcode, label and traceability information can be supplied according to the selected product configuration and customer requirements.
A compatible electrofusion control unit, pipe cutter, scraper, cleaning materials and alignment clamps are required.
Yes. Send us the main-pipe OD, branch-pipe OD, SDR, working pressure, application, standard and quantity for confirmation.
For an accurate quotation, please provide:
Contact us today for product drawings, samples, technical information and pricing.
