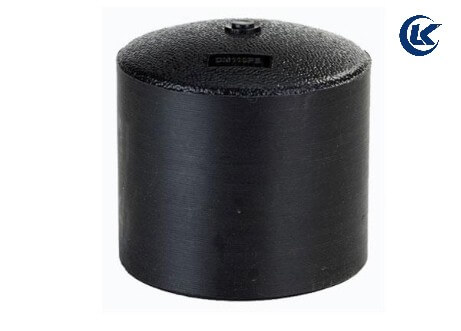

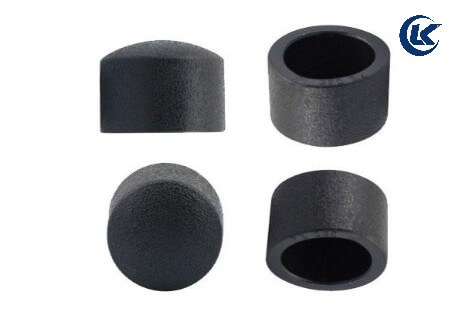

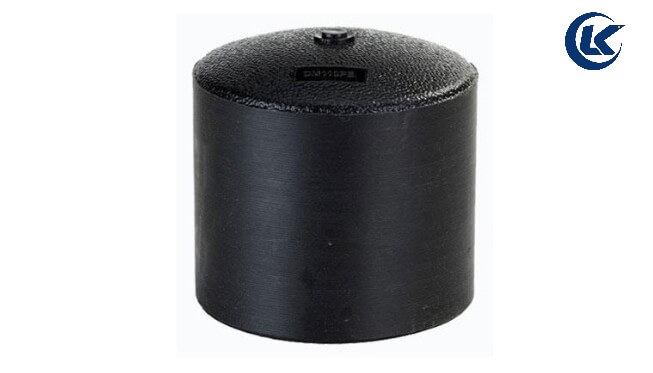

HDPE End Cap

Core Parameters

• Size – DN75-630mm (Can Be Customized)

  Pressure rating : SDR11-PN16 Bar, SDR13.6-PN12.5 Bar, SDR17-PN10 Bar, SDR21-PN6 Bar, SDR26-PN6 Bar

  Raw materials:High Quality PE80 Or PE100 Raw Materials

  Supply capacity: 3 × 40 feet per week container.

  Certificate:ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 Certification

  It is widely used in water supply, irrigation, gas distribution, industrial, mining and municipal pipeline systems. The end cap is suitable for terminating newly installed pipelines, closing future expansion points, isolating unused branches or forming a sealed pipeline end where permitted by the project specification.


  Available in standard sizes from DN/OD 75 mm to 630 mm, with additional sizes and customized configurations available on request.

  Factory pricing. Global compliance. Ready to supply. Get your quote.



• An HDPE Butt Fusion End Cap, also known as an HDPE Pipe Cap, is used to close the end of an HDPE pipe by butt fusion welding. The end cap is clamped into a butt fusion machine together with the pipe, and the matching faces are trimmed, heated and joined under controlled pressure.


  After the specified cooling period, the pipe and fitting form a continuous PE joint without threaded connections, mechanical seals or metal components in the fusion zone. This creates a durable end closure for HDPE pipelines.


  Unlike an electrofusion end cap, this product does not contain electrical terminals or embedded resistance coils. It is specifically designed for butt fusion installation.



Product Features

• • ✅Designed for permanent HDPE pipeline end closure
  • ✅Butt fusion connection for a homogeneous welded joint
  • ✅Injection-moulded PE100 construction
  • ✅Strong, leak-tight and corrosion-resistant connection
  • ✅Suitable for buried and above-ground pipeline systems
  • ✅Compatible with HDPE pipes of matching OD and SDR
  • ✅Available in multiple SDR and pressure-class configurations
  • ✅Black is standard; blue or customized colours available on request
  • ✅Custom size, marking, packaging and OEM service available
  • ✅Suitable for water, gas, irrigation, industrial and mining applications

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Technical Specifications

Typical Size Combinations

Applications

HDPE Butt Fusion End Caps are suitable for:

• ✅Municipal water-supply pipelines
• ✅Agricultural irrigation networks
• ✅Natural-gas pipeline systems, subject to applicable standards
• ✅Industrial fluid-transfer systems
• ✅Mining and slurry pipelines
• ✅Wastewater and drainage applications
• ✅Pipeline end closure and future extension points
• ✅Maintenance, repair and pipeline modification projects
• ✅Pressure-test blanking where permitted by the approved project procedure

Butt Fusion Installation Guidelines

• Installation should be completed by trained personnel using a suitable butt fusion machine.

  1. 1. Confirm that the pipe and end cap have matching OD, SDR and material grade.
  2. 2. Clamp the HDPE pipe and end cap securely into the butt fusion machine.
  3. 3. Face both fusion surfaces until they are clean, flat, square and free from oxidation.
  4. 4. Check alignment and make sure there is no unacceptable offset or gap.
  5. 5. Heat both surfaces using the heater plate according to the approved welding procedure.
  6. 6. Remove the heater plate within the specified changeover time.
  7. 7. Join the pipe and end cap under the required fusion pressure.
  8. 8. Maintain pressure throughout the required cooling period.
  9. 9. Inspect the fusion bead for uniformity before placing the pipeline into service.

  Do not use generic fusion parameters in place of the approved procedure for the actual pipe, fitting, wall thickness and machine.

Why Choose Our HDPE Butt Fusion End Cap?

• ✅Permanent end closure for HDPE pipeline systems
• ✅Injection-moulded PE100 material for consistent dimensions
• ✅No electrical components or mechanical seals required
• ✅Corrosion-resistant and suitable for buried installation
• ✅Compatible with standard butt fusion equipment
• ✅Multiple SDR and size options available
• ✅Flexible OEM, labelling and packaging service

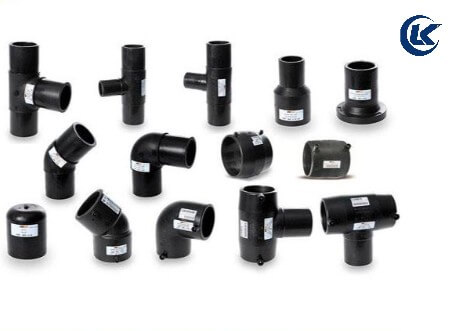

• ✅Related butt fusion fittings available, including elbows, tees, reducers, crosses, stub flanges and flange adaptors

Frequently Asked Questions

What is an HDPE butt fusion end cap used for?

It is used to permanently close the end of an HDPE pipeline through butt fusion welding.

Can this end cap be installed by electrofusion?

No. This product is a butt fusion end cap. It must be connected using an appropriate butt fusion machine.

Can it be used for water and gas systems?

Yes, subject to the selected PE grade, SDR, pressure rating, applicable standard and project approval.

What should match before welding?

The pipe and end cap must have compatible outside diameter, SDR, material grade and butt fusion parameters.

Can you provide custom sizes?

Yes. Send the required pipe OD, SDR, working pressure, application, quantity and project standard for confirmation.

Request a Quote

Please provide:

• ✅Required end-cap size and pipe OD
• ✅Pipe SDR and wall thickness
• ✅Application: water, gas, irrigation, industrial or mining
• ✅Material requirement
• ✅Working pressure and standard
• ✅Quantity and destination port
• ✅Colour, label and packaging requirements

Contact us today for drawings, samples, technical information and pricing.

Please send your request to the email address:sales@mfgpipe.com (We will respond to you within 24 hours).

Fill in Your Requirements
