HDPE methane extraction pipes

Henan LuKuang Trading HDPE methane extraction pipe complies with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS international standards, and is certified by CE, ISO 9001, ISO 14001, OHSAS 18001, and WRAS, with a complete range of fittings available. Specifically designed for coal mine gas (coalbed methane) extraction, it offers excellent safety, corrosion resistance, and long service life, making it an ideal solution for efficient and stable methane drainage systems. For more information, please feel free to contact us.

WhatsApp: 8615515833787 WeChat: 15515833787
Send Email Get A Quote

Core Parameters

  • Size Range: DN16–1600mm (customizable, covering various coal mine methane extraction applications)


    Pressure Rating: SDR 41–PN4 to SDR 6–PN32, suitable for different extraction pressure requirements


    Service Life: Up to 70 years, ideal for long-term mining operations with reduced maintenance costs


    Raw Materials: PE80, PE100, PE4710 high-quality virgin materials, ensuring stable performance in complex mining environments


    Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS, ensuring reliable quality compliance


    Color Options: Black, blue, or black with red/yellow stripes for easy on-site identification and management

         6

  • Henan LuKuang Trading HDPE methane extraction pipe is specially designed for coal mine gas (coalbed methane) drainage systems, ensuring safe and efficient transport of methane extracted from underground mines. Coal mine gas, mainly composed of methane, is both a valuable clean energy source and a key safety concern in mining operations, making reliable extraction systems essential.

    Manufactured from high-quality PE80, PE100, and PE4710 virgin materials in compliance with ISO 4427, AS/NZS 4130, BS EN 12201, and SABS standards, the pipe features anti-static, flame-retardant, impact-resistant, high-strength, and flexible properties. It operates stably at temperatures up to 60°C and withstands pressures up to 1.6 MPa, making it suitable for methane extraction, water supply, ventilation, and pressurization in coal mines, providing a safe and efficient solution for underground operations.

    2
  • 4
  • 5
  • 03dibu3



Core Product Advantages

1.Flame-Retardant & Anti-Static Stability: Stable flame-retardant and anti-static performance over long-term use, ensuring safe operation in high-risk coal mine methane extraction environments and reducing safety risks.



2.Excellent Corrosion Resistance: Strong chemical stability, resistant to various corrosive media, suitable for complex underground conditions such as water and gas without extra anti-corrosion treatment.



3.Low Flow Resistance: Inner wall roughness ≤0.03 mm, much lower than steel and glass pipes, reducing energy loss and improving transport efficiency.



4.High Flexibility: Can be coiled in long lengths, reducing joints and fittings, lowering installation cost and simplifying underground construction.



5.Strong Crack Resistance: Excellent resistance to crack propagation, scratching, and stress cracking, ensuring durability in complex underground environments.

Product Basic Information Table

Product Name

HDPE Methane Extraction Pipe

Brand

Henan Lukuang Trade

Raw Materials

PE80, PE100, PE4710

Color Options

Black, Blue, Black with Red/Yellow Stripes

Executive Standards

ISO4427/ISO9001/AS/NZS 4130/BS EN 12201/SABS Standards

Customization Service

Support custom special specifications, can print customer logos, and accept relevant customization needs

Sample Supply

Samples available, supporting sample testing

Packaging Standard

International standard packaging; diameter <110mm in coils, diameter >110mm in single lengths (5.8 meters or 11.8 meters)

Minimum Order Quantity

Negotiable

Production Cycle

Depends on order quantity; 20ft container: 7-10 days; 40ft container: 15-20 days

Certifications

ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certifications

Warranty Period

30-year warranty under normal use

Payment Terms

Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight

FOB Port

Chongqing, Qingdao, Tianjin, Shanghai, etc.

Country of Origin

China

Customer Log

Customer log available

Applicable Temperature

Normal temperature not exceeding 60℃

Maximum Pressure Resistance

1.6 MPa

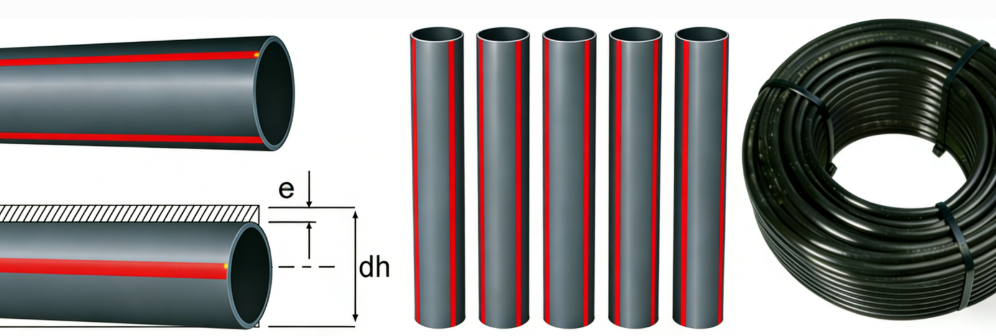

HDPE Pipe Specification Parameter Comparison Table

We offer HDPE pipes with diameters ranging from DN16mm to 1600mm.

7

SDR41 PN4 SDR33 PN5 SDR26 PN6 SDR21 PN8 SDR17 PN10 SDR13.6 PN12.5 SDR11 PN16 SDR9 PN20 SDR7.4 PN25 SDR6 PN32
DN (mm) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m) W.T. (mm) G.W. (kg/m)
16 - - - - - - - - - - - - - - - - - - 3 0.12
20 - - - - - - 1 0.06 1.2 0.07 1.5 0.09 2 0.11 2.3 0.13 3 0.16 3.4 0.18
25 - - - - - - 1.2 0.09 1.5 0.12 2 0.15 2.3 0.16 3 0.21 3.5 0.24 4.2 0.28
32 - - - - - - 1.5 0.15 2 0.19 2.4 0.24 3 0.27 3.6 0.32 4.4 0.38 5.4 0.45
40 - - - - - - 2 0.26 2.4 0.29 3 0.36 3.7 0.42 4.5 0.5 5.5 0.6 6.7 0.7
50 - - - - 1.8 0.29 2.4 0.36 3 0.45 3.7 0.54 4.6 0.66 5.6 0.78 6.9 0.93 8.3 1.08
63 1.8 0.36 2 0.39 2.4 0.47 3 0.57 3.8 0.71 4.7 0.87 5.8 1.04 7.1 1.25 8.6 1.46 10.3 1.69
75 1.9 0.45 2.3 0.54 2.7 0.63 3.6 0.81 4.5 1.01 5.6 1.23 6.8 1.46 8.4 1.75 10.3 2.08 12.5 2.43
90 2.3 0.64 2.8 0.78 3.3 0.93 4.3 1.16 5.4 1.45 6.7 1.76 8.2 2.11 10.1 2.53 12.3 2.99 15 3.51
110 2.7 0.93 3.4 1.16 4 1.37 5.3 1.74 6.6 2.15 8.1 2.6 10 3.13 12.3 3.76 15.1 4.47 18.3 5.22
125 3.1 1.22 3.9 1.5 4.5 1.74 6 2.25 7.4 2.74 9.2 3.35 11.4 4.06 14 4.87 17.1 5.76 20.8 6.74
140 3.5 1.52 4.3 1.86 5.1 2.21 6.7 2.81 8.3 3.44 10.3 4.2 12.7 5.06 15.7 6.09 19.2 7.23 23.3 8.45
160 4 1.97 4.9 2.4 5.8 2.87 7.7 3.69 9.5 4.5 11.8 5.48 14.6 6.64 17.9 7.94 21.9 9.42 26.6 11.03
180 4.4 2.46 5.5 3.04 6.5 3.61 8.6 4.64 10.7 5.69 13.3 6.96 16.4 8.4 20.1 10.04 24.6 11.91 29.9 13.94
200 4.9 3.02 6.2 3.81 7.2 4.44 9.6 5.75 11.9 7.02 14.7 8.53 18.2 10.36 22.4 12.42 27.4 14.73 33.2 17.21
225 5.5 3.82 6.9 4.74 8.1 5.68 10.8 7.26 13.4 8.9 16.6 10.83 20.3 13 25.2 15.72 30.8 18.61 37.4 21.79
250 6.2 4.79 7.7 5.88 9.1 6.99 11.9 8.89 14.8 10.91 18.4 13.34 22.7 16.12 27.9 19.32 34.2 22.98 41.5 26.87
280 6.9 5.94 8.6 7.35 10.1 8.71 13.4 11.18 16.6 13.7 20.6 16.72 25.4 20.21 31.3 24.28 38.3 28.82 46.5 33.71
315 7.7 7.46 9.7 9.32 11.4 11.02 15 14.1 18.7 17.35 23.2 21.19 28.6 25.58 35.2 30.72 43.1 36.48 52.3 42.66
355 8.7 9.49 10.9 11.78 12.9 14.05 16.9 17.86 21.1 22.09 26.1 26.87 32.2 32.47 39.7 39.01 48.5 46.25 59 54.19
400 9.8 12.03 12.3 15.01 14.5 17.83 19.1 22.72 23.7 27.91 29.4 34.07 36.3 41.23 44.7 49.49 54.7 58.75 66.7 68.95
450 11 15.17 13.8 18.9 16.3 22.52 21.5 28.81 26.7 35.36 33.1 43.16 40.9 52.21 50.3 62.66 61.5 74.32 - -
500 12.3 18.89 15.3 23.31 18.1 27.74 23.9 35.56 29.7 43.7 36.8 53.25 45.4 64.42 55.8 77.22 67.7 97.19 - -
560 13.7 23.52 17.2 29.34 20.3 34.84 26.7 44.51 33.2 54.74 41.2 66.81 50.8 80.7 62.2 96.43 75.7 121.9 - -
630 15.4 29.75 19.3 37.01 22.8 43.99 30 56.24 37.4 69.33 46.3 84.75 57.2 102.25 70.3 125.86 85.1 154.82 - -
710 17.4 37.86 21.8 47.04 25.7 55.89 33.9 71.52 42.1 87.97 52.2 107.28 64.5 129.97 79.3 161.88 95.9 195.82 - -
800 19.6 48.01 24.5 59.58 29 71.11 38.1 90.58 47.4 111.55 58.8 136.09 72.6 175.59 89.3 210.68 - - - -
900 22 60.55 27.6 75.47 32.6 89.82 42.9 114.77 53.3 141.11 66.2 172.29 81.7 222.3 - - - - - -
1000 24.5 74.98 30.6 92.96 36.2 110.84 47.7 141.83 59.3 174.39 73.5 212.64 90.2 272.87 - - - - - -
1200 29.4 107.97 36.7 133.73 43.5 159.84 57.2 203.39 70.6 248.56 88.2 326.06 - - - - - - - -
1400 34.3 146.87 42.9 182.28 50.7 217.01 66.7 276.21 82.4 337.82 102.9 443.8 - - - - - - - -
1600 39.2 191.8 49 237.89 58 283.79 76.2 360.37 94.1 440.55 - - - - - - - - - -

Note: Special specifications are available upon request. Please contact us for further product information and pricing.

Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).

Core Advantages

Safe and Reliable: Stable flame-retardant and anti-static performance, designed for high-risk coal mining environments to ensure safe methane extraction.

Long Service Life: Made from high-quality virgin materials with advanced manufacturing, offering up to 70 years of service life and low maintenance cost.



Energy Efficient: Smooth inner wall with low flow resistance, reducing energy consumption and improving transport efficiency.



Easy Installation: Lightweight and flexible, easy for underground handling and installation, saving labor and time.



Highly Adaptable: Customizable sizes and pressure ratings, suitable for various mining and supporting systems.



Wear & Impact Resistant: Strong resistance to abrasion and impact in harsh underground environments, extending service life.



Cost-Effective: Fewer joints required and low maintenance cost, offering excellent overall value.



Fully Certified: Complies with multiple international standards, safe for underground coal mine applications.



Application Fields



Henan LuKuang Trading HDPE methane extraction pipes are widely used in mining and industrial sectors:

Coal Mine Methane Extraction: Core application for safe extraction and transport of coalbed methane, ensuring safety and energy recovery.



Underground Mining Systems: Used in water supply, ventilation, pressurization, and spraying systems.



Municipal Engineering: Applied in gas and water supply systems for improved pipeline stability.



Petrochemical Industry: Suitable for corrosive media transportation with high safety performance.



Agricultural Irrigation: Ideal for irrigation systems with easy installation and flexibility.



Other Engineering Fields: Widely used in mining and underground infrastructure projects.
