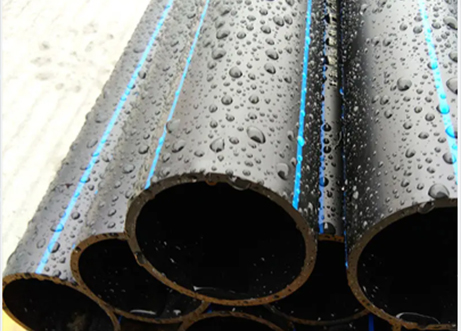

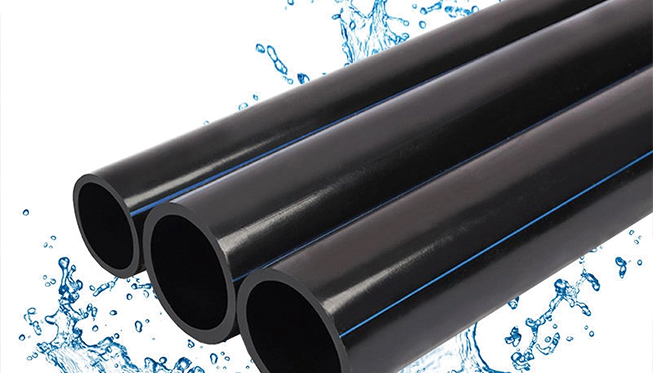

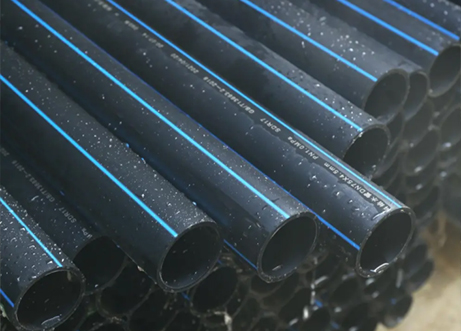

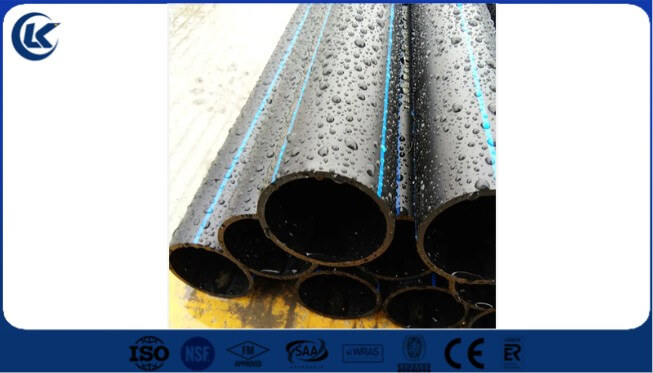

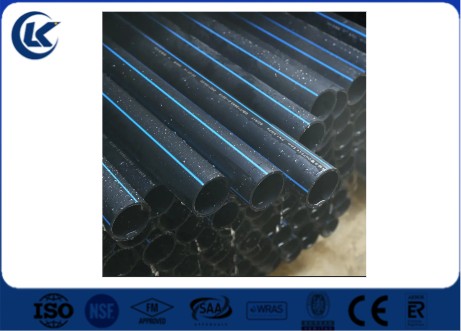

Our HDPE pipes comply with ISO4427 and other international standards, available in black, blue or black with blue stripes, and have obtained CE, ISO 9001 and other full certifications. Complete supporting pipe fittings are provided. For more information, specifications and price lists about HDPE water supply pipes, please contact us!
WhatsApp: 86 15515833787 WeChat: 15515833787Raw Materials: High-quality PE80, PE100, PE4710, PE100RC grade HDPE, non-toxic and odorless, compliant with drinking water standards, suitable for various water supply projects.
Size Range: Regular DN16-1600mm, main DN20-1600mm, customizable to meet actual project needs.
Pressure Rating: 10 grades in total (from SDR 41-PN 4 to SDR 6-PN 32), produced accurately according to different rated pressures.
Service Life: 70 years
Applicable Temperature:Safe to use at -60℃ to 60℃, no embrittlement risk during winter construction, suitable for various climates.
Henan Lukuang Trade HDPE pipes are an ideal solution for municipal engineering systems and urban water supply and drainage systems. Made of high-quality raw materials such as PE100, PE4710 and PE100RC, the HDPE pipes have a size range of DN 16-1600mm, with main specifications of DN20-1600mm, and their performance strictly complies with ISO4427 standard and international certification standards such as AS/NZS 4130, BS EN 12201 and SABS. HDPE pipes for water supply can be produced according to different rated pressures, mainly including full-series pressure grades such as SDR11-PN16 bar, SDR13.6-PN12.5 bar, SDR17-PN10 bar, SDR21-PN8 bar and SDR26-PN6 bar, suitable for various working conditions such as low-pressure municipal pipe networks and medium-high pressure building water supply.
HDPE (High-Density Polyethylene) pipes for water supply are special pipes made of HDPE material, mainly used for liquid transportation (focusing on tap water supply) and also for gas transportation. Due to their excellent physical properties and chemical stability, HDPE pipes are widely used in many fields such as municipal engineering, agricultural irrigation, petrochemical industry, mining engineering and water supply and drainage engineering. They are upgraded alternative products of traditional steel pipes, concrete pipes and galvanized pipes, which can bear a certain pressure and have good mechanical properties, suitable for complex construction environments.This product is strictly controlled by production processes to ensure that its performance meets the standards. It has a smooth inner wall, excellent hydraulic performance, is not easy to scale or breed bacteria, can effectively reduce water supply energy consumption, and at the same time ensure clean water supply quality, meeting the safe, efficient and environmental protection needs of modern water supply systems.
HDPE pipes are an ideal solution for municipal water supply and drainage systems and urban water supply and drainage systems. Due to their many advantages, they are becoming more and more popular in the global water supply and drainage field. The core advantages are as follows:
Strong Corrosion Resistance: HDPE pipes can resist the corrosion of various chemical media. Chemical substances existing in the soil will not cause any damage to the pipes, no anti-corrosion treatment is required, suitable for long-term buried use, and can also be used for transporting acidic and alkaline substances.
Zero Leakage Guarantee: The polyethylene pipe system is connected by electric fusion and butt fusion methods, and the joint strength is higher than that of the pipe itself, which fundamentally eliminates interface leakage and ensures water supply safety.
High Toughness and Anti-Settlement: The elongation at break of HDPE pipes is generally more than 500%, with excellent flexibility, strong adaptability to uneven settlement during foundation engineering construction, good seismic performance, suitable for complex geological conditions such as earthquake zones and mining areas.
Excellent Stress Crack Resistance: HDPE has low notch sensitivity, high shear strength, excellent scratch resistance and outstanding environmental stress crack resistance, which can effectively resist scratches and collisions during construction, avoid pipe cracking and extend service life.
Excellent Flexibility: It has excellent flexibility and scratch resistance, not easy to be damaged during construction, suitable for various construction scenarios.
Good Rapid Crack Propagation (RCP) Performance: The polyethylene plastic pipe system has excellent rapid crack propagation resistance, avoiding pipe damage caused by sudden cracks and improving the safety of use.
Excellent Low-Temperature Impact Resistance: The low-temperature embrittlement temperature of polyethylene is very low, which can be safely used in the temperature range of -60℃ to 60℃. During winter construction, due to the good impact resistance of the material, the pipe will not be embrittled, suitable for cold areas in northern China.
Good Wear Resistance: HDPE pipes are lighter than concrete pipes, galvanized pipes and steel pipes, easy to handle and install. The lower demand for manpower and equipment means that the installation cost of the project is greatly reduced; there are various construction technologies, in addition to the traditional excavation method, there are also a variety of new non-excavation technologies such as pipe jacking, directional drilling and split lining construction, which are suitable for places where excavation is not allowed.
Low System Cost: The system cost and maintenance cost are low. Combined with the ultra-long service life of 70 years, it can greatly reduce the overall project cost, and the cost performance is far higher than that of traditional pipes.
Green and Recyclable: HDPE material can be reused, which is fully in line with the efficient environmental protection concept advocated by the state. The raw materials are non-toxic and odorless, no secondary pollution, and in line with drinking water safety standards.
|
Product Name |
HDPE Pipes for Water Supply |
|
Raw Materials |
PE80, PE100, PE4710, PE100RC |
|
Color Options |
Black, Blue or Black with Blue Stripes |
|
Executive Standards |
ISO4427, ISO9001, AS/NZS 4130, BS EN 12201, SABS Standards |
|
Customization Service |
Custom special specifications are supported, and customer logos are available |
|
Sample Supply |
Samples are available, supporting sample testing |
|
Packaging Standard |

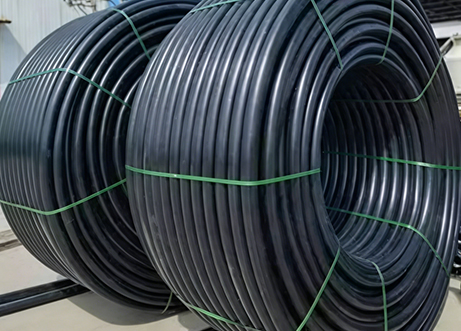

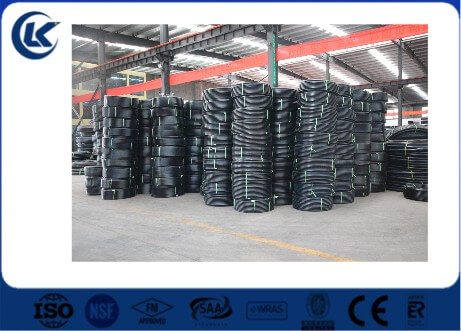

International standard packaging; coils for pipes less than 110mm, long lengths for pipes more than 110mm, with lengths of 5.8 meters or 11.8 meters |
|
Minimum Order Quantity |
Negotiable |
|
Production Cycle |
According to the order quantity, 20ft container: 7-10 days, 40ft container: 15-20 days |
|
Certifications |
ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201, WRAS Certification |
|
Warranty Period |
30 years under normal use (the actual service life of buried use can reach 70 years) |
|
Payment Terms |
Telegraphic Transfer (T/T) or Letter of Credit (L/C) at Sight |
|
FOB Port |
Major domestic ports such as Chongqing, Qingdao, Tianjin, Shanghai, etc. |
|
Country of Origin |
China |
| SDR41 PN4 | SDR33 PN5 | SDR26 PN6 | SDR21 PN8 | SDR17 PN10 | SDR13.6 PN12.5 | SDR11 PN16 | SDR9 PN20 | SDR7.4 PN25 | SDR6 PN32 | |||||||||||
| DN (mm) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) | W.T. (mm) | G.W. (kg/m) |
| 16 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3 | 0.12 |
| 20 | - | - | - | - | - | - | 1 | 0.06 | 1.2 | 0.07 | 1.5 | 0.09 | 2 | 0.11 | 2.3 | 0.13 | 3 | 0.16 | 3.4 | 0.18 |
| 25 | - | - | - | - | - | - | 1.2 | 0.09 | 1.5 | 0.12 | 2 | 0.15 | 2.3 | 0.16 | 3 | 0.21 | 3.5 | 0.24 | 4.2 | 0.28 |
| 32 | - | - | - | - | - | - | 1.5 | 0.15 | 2 | 0.19 | 2.4 | 0.24 | 3 | 0.27 | 3.6 | 0.32 | 4.4 | 0.38 | 5.4 | 0.45 |
| 40 | - | - | - | - | - | - | 2 | 0.26 | 2.4 | 0.29 | 3 | 0.36 | 3.7 | 0.42 | 4.5 | 0.5 | 5.5 | 0.6 | 6.7 | 0.7 |
| 50 | - | - | - | - | 1.8 | 0.29 | 2.4 | 0.36 | 3 | 0.45 | 3.7 | 0.54 | 4.6 | 0.66 | 5.6 | 0.78 | 6.9 | 0.93 | 8.3 | 1.08 |
| 63 | 1.8 | 0.36 | 2 | 0.39 | 2.4 | 0.47 | 3 | 0.57 | 3.8 | 0.71 | 4.7 | 0.87 | 5.8 | 1.04 | 7.1 | 1.25 | 8.6 | 1.46 | 10.3 | 1.69 |
| 75 | 1.9 | 0.45 | 2.3 | 0.54 | 2.7 | 0.63 | 3.6 | 0.81 | 4.5 | 1.01 | 5.6 | 1.23 | 6.8 | 1.46 | 8.4 | 1.75 | 10.3 | 2.08 | 12.5 | 2.43 |
| 90 | 2.3 | 0.64 | 2.8 | 0.78 | 3.3 | 0.93 | 4.3 | 1.16 | 5.4 | 1.45 | 6.7 | 1.76 | 8.2 | 2.11 | 10.1 | 2.53 | 12.3 | 2.99 | 15 | 3.51 |
| 110 | 2.7 | 0.93 | 3.4 | 1.16 | 4 | 1.37 | 5.3 | 1.74 | 6.6 | 2.15 | 8.1 | 2.6 | 10 | 3.13 | 12.3 | 3.76 | 15.1 | 4.47 | 18.3 | 5.22 |
| 125 | 3.1 | 1.22 | 3.9 | 1.5 | 4.5 | 1.74 | 6 | 2.25 | 7.4 | 2.74 | 9.2 | 3.35 | 11.4 | 4.06 | 14 | 4.87 | 17.1 | 5.76 | 20.8 | 6.74 |
| 140 | 3.5 | 1.52 | 4.3 | 1.86 | 5.1 | 2.21 | 6.7 | 2.81 | 8.3 | 3.44 | 10.3 | 4.2 | 12.7 | 5.06 | 15.7 | 6.09 | 19.2 | 7.23 | 23.3 | 8.45 |
| 160 | 4 | 1.97 | 4.9 | 2.4 | 5.8 | 2.87 | 7.7 | 3.69 | 9.5 | 4.5 | 11.8 | 5.48 | 14.6 | 6.64 | 17.9 | 7.94 | 21.9 | 9.42 | 26.6 | 11.03 |
| 180 | 4.4 | 2.46 | 5.5 | 3.04 | 6.5 | 3.61 | 8.6 | 4.64 | 10.7 | 5.69 | 13.3 | 6.96 | 16.4 | 8.4 | 20.1 | 10.04 | 24.6 | 11.91 | 29.9 | 13.94 |
| 200 | 4.9 | 3.02 | 6.2 | 3.81 | 7.2 | 4.44 | 9.6 | 5.75 | 11.9 | 7.02 | 14.7 | 8.53 | 18.2 | 10.36 | 22.4 | 12.42 | 27.4 | 14.73 | 33.2 | 17.21 |
| 225 | 5.5 | 3.82 | 6.9 | 4.74 | 8.1 | 5.68 | 10.8 | 7.26 | 13.4 | 8.9 | 16.6 | 10.83 | 20.3 | 13 | 25.2 | 15.72 | 30.8 | 18.61 | 37.4 | 21.79 |
| 250 | 6.2 | 4.79 | 7.7 | 5.88 | 9.1 | 6.99 | 11.9 | 8.89 | 14.8 | 10.91 | 18.4 | 13.34 | 22.7 | 16.12 | 27.9 | 19.32 | 34.2 | 22.98 | 41.5 | 26.87 |
| 280 | 6.9 | 5.94 | 8.6 | 7.35 | 10.1 | 8.71 | 13.4 | 11.18 | 16.6 | 13.7 | 20.6 | 16.72 | 25.4 | 20.21 | 31.3 | 24.28 | 38.3 | 28.82 | 46.5 | 33.71 |
| 315 | 7.7 | 7.46 | 9.7 | 9.32 | 11.4 | 11.02 | 15 | 14.1 | 18.7 | 17.35 | 23.2 | 21.19 | 28.6 | 25.58 | 35.2 | 30.72 | 43.1 | 36.48 | 52.3 | 42.66 |
| 355 | 8.7 | 9.49 | 10.9 | 11.78 | 12.9 | 14.05 | 16.9 | 17.86 | 21.1 | 22.09 | 26.1 | 26.87 | 32.2 | 32.47 | 39.7 | 39.01 | 48.5 | 46.25 | 59 | 54.19 |
| 400 | 9.8 | 12.03 | 12.3 | 15.01 | 14.5 | 17.83 | 19.1 | 22.72 | 23.7 | 27.91 | 29.4 | 34.07 | 36.3 | 41.23 | 44.7 | 49.49 | 54.7 | 58.75 | 66.7 | 68.95 |
| 450 | 11 | 15.17 | 13.8 | 18.9 | 16.3 | 22.52 | 21.5 | 28.81 | 26.7 | 35.36 | 33.1 | 43.16 | 40.9 | 52.21 | 50.3 | 62.66 | 61.5 | 74.32 | - | - |
| 500 | 12.3 | 18.89 | 15.3 | 23.31 | 18.1 | 27.74 | 23.9 | 35.56 | 29.7 | 43.7 | 36.8 | 53.25 | 45.4 | 64.42 | 55.8 | 77.22 | 67.7 | 97.19 | - | - |
| 560 | 13.7 | 23.52 | 17.2 | 29.34 | 20.3 | 34.84 | 26.7 | 44.51 | 33.2 | 54.74 | 41.2 | 66.81 | 50.8 | 80.7 | 62.2 | 96.43 | 75.7 | 121.9 | - | - |
| 630 | 15.4 | 29.75 | 19.3 | 37.01 | 22.8 | 43.99 | 30 | 56.24 | 37.4 | 69.33 | 46.3 | 84.75 | 57.2 | 102.25 | 70.3 | 125.86 | 85.1 | 154.82 | - | - |
| 710 | 17.4 | 37.86 | 21.8 | 47.04 | 25.7 | 55.89 | 33.9 | 71.52 | 42.1 | 87.97 | 52.2 | 107.28 | 64.5 | 129.97 | 79.3 | 161.88 | 95.9 | 195.82 | - | - |
| 800 | 19.6 | 48.01 | 24.5 | 59.58 | 29 | 71.11 | 38.1 | 90.58 | 47.4 | 111.55 | 58.8 | 136.09 | 72.6 | 175.59 | 89.3 | 210.68 | - | - | - | - |
| 900 | 22 | 60.55 | 27.6 | 75.47 | 32.6 | 89.82 | 42.9 | 114.77 | 53.3 | 141.11 | 66.2 | 172.29 | 81.7 | 222.3 | - | - | - | - | - | - |
| 1000 | 24.5 | 74.98 | 30.6 | 92.96 | 36.2 | 110.84 | 47.7 | 141.83 | 59.3 | 174.39 | 73.5 | 212.64 | 90.2 | 272.87 | - | - | - | - | - | - |
| 1200 | 29.4 | 107.97 | 36.7 | 133.73 | 43.5 | 159.84 | 57.2 | 203.39 | 70.6 | 248.56 | 88.2 | 326.06 | - | - | - | - | - | - | - | - |
| 1400 | 34.3 | 146.87 | 42.9 | 182.28 | 50.7 | 217.01 | 66.7 | 276.21 | 82.4 | 337.82 | 102.9 | 443.8 | - | - | - | - | - | - | - | - |
| 1600 | 39.2 | 191.8 | 49 | 237.89 | 58 | 283.79 | 76.2 | 360.37 | 94.1 | 440.55 | - | - | - | - | - | - | - | - | - | - |
Note: We provide HDPE pipes with diameters from DN 20mm to DN 1600mm, and special specifications can be customized.
Please contact us for more product information, detailed specification parameter tables and prices.
According to the construction scenario, pipe diameter and installation conditions, we provide three professional connection methods, which take into account firmness, tightness and flexibility, suitable for various engineering needs:
Butt Fusion: This is a common connection method, suitable for large-diameter pipes. Use a special HDPE pipe welding machine to heat the two ends of the pipe to a molten state, then quickly butt and fuse them to integrate the two ends, so as to ensure the firmness and tightness of the connection, suitable for large-scale water supply projects such as municipal pipe networks.
Electrofusion Connection: Electrofusion connection is a method of connection using HDPE electrofusion pipe fittings, suitable for occasions where hot melt connection is not possible due to installation position restrictions. In this connection method, the same type of thermoplastic pipe is inserted into a special electrofusion pipe fitting. The electrofusion pipe fitting is energized by an electrofusion connection machine, and the resistance wire pre-embedded inside it generates the heat required for welding, so that the pipe and the pipe fitting are fused and combined, with simple operation and reliable connection.
Flange Connection: When it is necessary to connect HDPE pipes with other pipes or equipment, flange connection can be used. Flange connection tightly connects the two flange ends through bolts and gaskets, which is flexible to disassemble, convenient for later equipment maintenance and pipe inspection, suitable for industrial factories, water treatment equipment and other occasions that require more flexible connection.
With its unique performance advantages, HDPE water supply pipes have a wide range of application scenarios, covering people's livelihood, industry, municipal administration and other fields, mainly used in Municipal Engineering.Municipal public water supply systems, urban pipe network laying and renovation, old pipe renovation projects.
Construction Field: Indoor water supply pipes of buildings, outdoor buried water supply systems, buried water supply systems in residential areas and factories;
Water Conservancy Irrigation: Agricultural water conservancy projects such as garden irrigation, farmland irrigation and greening water supply;
Industrial Field: Water treatment engineering pipe systems, industrial water pipe fields such as production water transportation pipes in industrial factories;
Special Scenarios: Areas with serious soil layer settlement such as earthquake zones and mining areas, no external protection is required when used underground, and the adaptability is extremely strong.
At the same time, their non-toxic, non-corrosive and non-scaling characteristics effectively improve the water quality of the pipe network, and their low inner wall roughness can effectively reduce water supply energy consumption, ensuring the safe and efficient use of water resources and occupying an important position in the water supply industry.
Henan Lukuang Trade Co., Ltd. specializes in supplying HDPE pipes for water supply, providing high-quality products and perfect services throughout the whole process, meeting your engineering needs one-stop from specification selection, customized production to logistics and distribution. For detailed specification parameter tables, product quotes, sample applications or customized solutions, please feel free to contact us, and we will answer your questions and provide professional support as soon as possible!
