HDPE + PVC: One Water Supply Project, Two Smart Piping Solutions

Project Date: March 2026
Project Type: Municipal Water Supply & Rural Drinking Water Renovation
Applied Products: HDPE Water Supply Pipe & PVC-U Pressure Water Pipe
Project Region: East Africa

One Project, Two Pipe Solutions

Not every section of a water supply network has the same requirements.

Some pipelines need to handle ground movement, long-distance water transmission, and challenging construction conditions. Others need to provide a cost-effective solution for residential communities and rural distribution networks.

For this municipal and rural water supply project in East Africa, we combined HDPE water supply pipes and PVC-U pressure pipes according to different pipeline functions, installation conditions, and project requirements.

The result was a practical balance between reliability, installation efficiency, and overall project cost.

Project Challenges

The project included both urban and rural pipeline sections, creating several challenges:

• ✅Soft soil and potential ground settlement in some construction areas
• ✅Long-distance water transmission requiring reliable pressure performance
• ✅Budget limitations for rural and community branch networks
• ✅Road-crossing and other sections requiring flexible installation solutions
• ✅Drinking-water applications requiring suitable pipe materials and standards

Instead of using one pipe material throughout the entire project, the pipeline system was divided according to its actual operating conditions.

The Solution: HDPE for Main Lines, PVC-U for Branch Networks

1. HDPE Water Supply Pipes for Main Transmission Lines

For buried municipal mains, long-distance transmission sections, and selected trenchless installation areas, PE100 HDPE water supply pipes were selected.

Key advantages include:

• ✅High flexibility for areas with ground movement and uneven settlement
• ✅Excellent impact resistance and toughness
• ✅Fusion-jointed connections designed to provide high joint integrity
• ✅Good resistance to corrosion and many common chemicals
• ✅Suitable for demanding underground and trenchless installation conditions

For sections requiring additional flexibility and joint reliability, HDPE provided a strong solution for the main water transmission network.

2. PVC-U Pressure Pipes for Branch Networks

For residential branches, conventional rural water supply networks, and sections with relatively straightforward installation conditions, PVC-U pressure water pipes were selected.

Their advantages include:

• ✅High rigidity and dimensional stability
• ✅Lightweight and easy handling
• ✅Efficient socket-based installation
• ✅Good corrosion resistance
• ✅Competitive material cost for large-scale branch networks
• ✅Suitable options for drinking-water applications when manufactured and certified according to applicable standards

This allowed the project to control the cost of the extensive branch network without compromising the requirements of the designed water supply system.

Construction & Installation

Different pipe materials were installed using connection methods appropriate to each system.

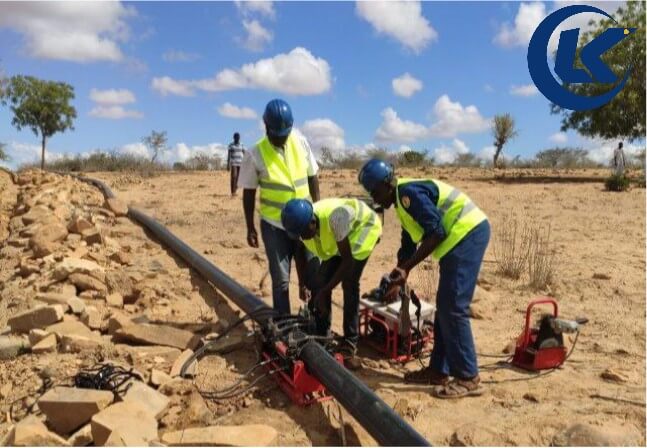

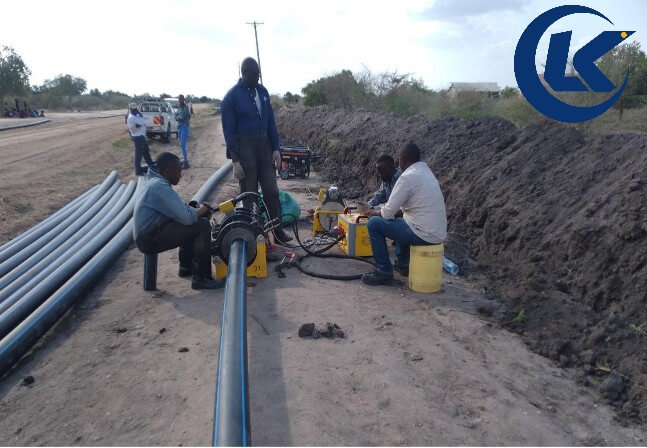

The HDPE main lines used butt fusion and electrofusion where specified, creating continuous, high-integrity joints when properly installed and tested.

For selected road-crossing sections, trenchless installation methods were considered to reduce excavation and minimize disruption to existing roads and infrastructure.

PVC-U branch pipes used socket-type connections, providing an efficient installation method for conventional rural and community pipeline sections.

Before commissioning, the installed pipeline sections were subjected to the specified pressure and leakage testing procedures in accordance with the applicable project requirements.

Why Combine HDPE and PVC?

The key to this project was not simply choosing the “best” pipe.

It was choosing the right pipe for the right section.
