HDPE corrugated pipes manufactured to ISO standards and certified by CE, ISO 9001, and ISO 14001. Offering a full range of double-wall corrugated solutions, they deliver excellent durability, corrosion resistance, and high drainage efficiency—making them an ideal choice for municipal, urban, and wastewater systems. Contact us for more details.
WhatsApp: 8615515833787 WeChat: 15515833787Wide Size Range: DN300–3000 mm with customization, ideal for large-scale drainage and sewage systems
Long Service Life: 70–100 years, reducing maintenance and lifecycle costs
Premium Material: PE80/PE100 with UV and oxidation resistance for stable performance in harsh conditions
Certified Quality: Complies with ISO, CE, and international standards for reliable engineering use
High Strength: Ring stiffness from SN2 to SN12.5, ensuring excellent load-bearing capacity
Standard Color: Black for easy identification and installation

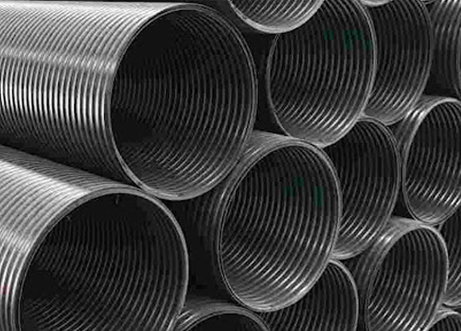

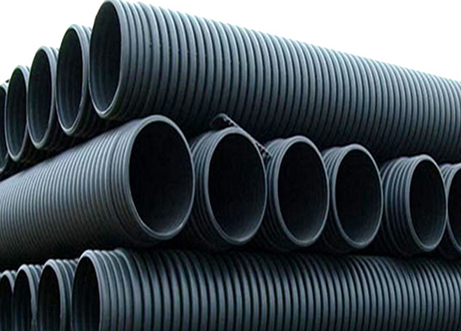

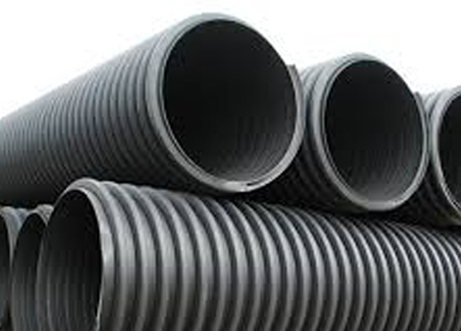

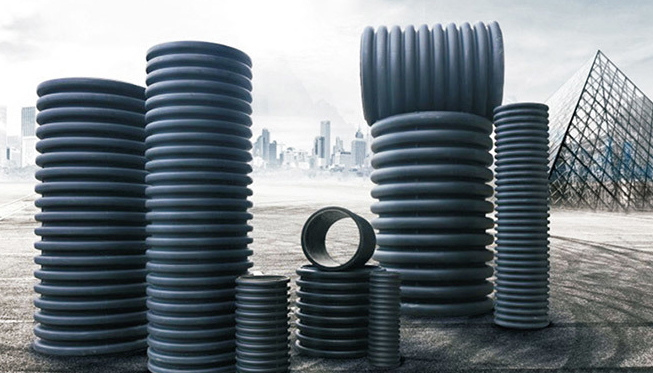

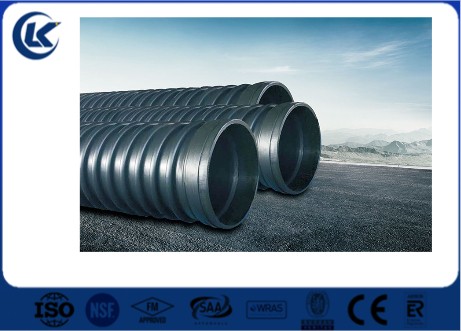

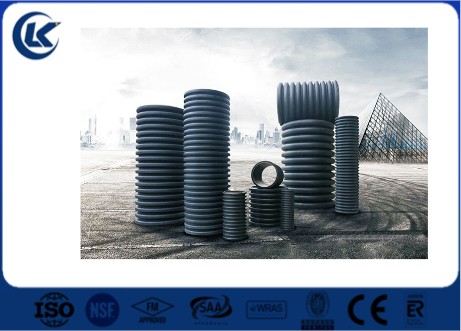

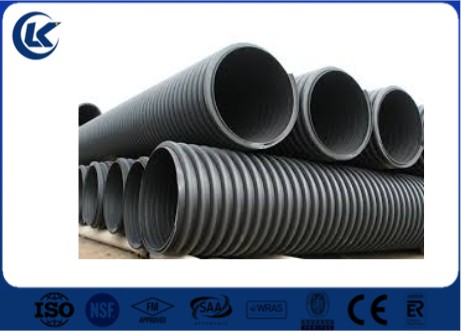

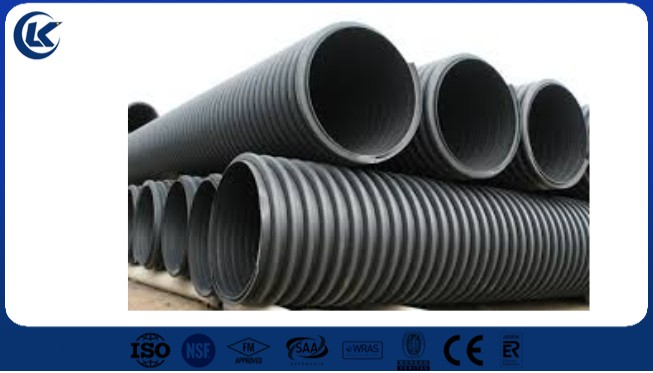

HDPE corrugated pipes are manufactured using advanced double-wall co-extrusion technology, designed for municipal and urban drainage systems. Compliant with ISO standards and available in DN300–3000 mm (customizable), they feature a smooth inner wall for efficient flow and a corrugated outer wall that enhances ring stiffness and load-bearing capacity.
With excellent corrosion resistance and no need for additional anti-corrosion treatment, these pipes perform reliably in complex environments. Their high-strength yet flexible structure resists soil pressure and deformation after burial, ensuring long-term durability, high flow efficiency, and reduced maintenance costs.
Efficient Drainage: Smooth inner wall reduces flow resistance, ideal for stormwater, sewage, and industrial wastewater with no clogging
Protection Use: Suitable as cable conduit and bridge pre-stressed pipe, protecting utilities from pressure and corrosion
High Load Resistance: Corrugated structure provides strong ring stiffness and flexibility, resisting soil movement and ground settlement.
Agricultural Irrigation: Safe and eco-friendly for farmland and orchard irrigation without soil or water contamination
|
Product Name |
High Density Polyethylene (HDPE) Corrugated Pipe |
|
Brand |
Henan Lukuang Trade |
|
Raw Materials |
Top-grade PE80 or PE100 materials |
|
Color Option |
Black |
|
Executive Standards |
ISO4427/ISO9001/AS/NZS 4130/BS EN 12201/SABS Standards |
|
Custom Service |
Supports OEM, customer logo printing and custom special specifications |
|
Minimum Order Quantity |
Negotiable |
|
Delivery Time |
7-10 days for 20ft container, 15-20 days for 40ft container, depending on the order quantity |
|
Certifications |
ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12201 Certifications |
|
Warranty Period |
30-year warranty under normal use |
|
Payment Method |
Telegraphic Transfer (T/T) or Letter of Credit (L/C) at sight |
|
Delivery Port |
Chongqing, Qingdao, Tianjin, Shanghai, etc. |
|
Country/Region of Origin |
China |
|
Core Applications |
Drainage, sewage discharge, protection and irrigation in municipal, agricultural, industrial, mining and other fields |
|
Length (mm) |
Specification (DN/mm) |
SN2≧2KN/㎡ |
SN4≧4KN/㎡ |
SN8≧8KN/㎡ |
|
6000 (Optional)
|
300 |
- |
- |
Thickness 13mm, 1 wall layer |
|
400 |
- |
Thickness 13mm, 1 wall layer |
Thickness 17mm, 1 wall layer |
|
|
500 |
Thickness 13mm, 1 wall layer |
Thickness 17mm, 1 wall layer |
Thickness 21mm, 1 wall layer |
|
|
600 |
Thickness 17mm, 1 wall layer |
Thickness 21mm, 1 wall layer |
Thickness 26mm, 1 wall layer |
|
|
700 |
Thickness 21mm, 1 wall layer |
Thickness 26mm, 1 wall layer |
Thickness 31mm, 1 wall layer |
|
|
800 |
Thickness 26mm, 1 wall layer |
Thickness 31mm, 1 wall layer |
Thickness 36mm, 1 wall layer |
|
|
900 |
Thickness 26mm, 1 wall layer |
Thickness 31mm, 1 wall layer |
Thickness 36mm, 1 wall layer |
|
|
1000 |
Thickness 31mm, 1 wall layer |
Thickness 36mm, 1 wall layer |
Thickness 41mm, 1 wall layer |
|
|
1100 |
Thickness 31mm, 1 wall layer |
Thickness 36mm, 1 wall layer |
Thickness 26+26mm, 2 wall layers |
|
|
1200 |
Thickness 31mm, 1 wall layer |
Thickness 41mm, 1 wall layer |
Thickness 31+26mm, 2 wall layers |
|
|
1300 |
Thickness 36mm, 1 wall layer |
Thickness 41mm, 1 wall layer |
Thickness 31+31mm, 2 wall layers |
|
|
1400 |
Thickness 36mm, 1 wall layer |
Thickness 31+26mm, 2 wall layers |
Thickness 36+31mm, 2 wall layers |
|
|
1500 |
Thickness 41mm, 1 wall layer |
Thickness 31+31mm, 2 wall layers |
Thickness 36+36mm, 2 wall layers |
|
|
1600 |
Thickness 41mm, 2 wall layers |
Thickness 31+31mm, 2 wall layers |
Thickness 36+36mm, 2 wall layers |
|
|
1700 |
Thickness 26+26mm, 2 wall layers |
Thickness 31+31mm, 2 wall layers |
Thickness 41+36mm, 2 wall layers |
|
|
1800 |
Thickness 26+26mm, 2 wall layers |
Thickness 36+31mm, 2 wall layers |
Thickness 41+36mm, 2 wall layers |
|
|
1900 |
Thickness 31+26mm, 2 wall layers |
Thickness 36+31mm, 2 wall layers |
Thickness 41+41mm, 2 wall layers |
|
|
2000 |
Thickness 31+33mm, 2 wall layers |
Thickness 36+36mm, 2 wall layers |
Thickness 41+41mm, 2 wall layers |
|
|
2100 |
Thickness 31+33mm, 2 wall layers |
Thickness 36+36mm, 2 wall layers |
Thickness 41+41mm, 3 wall layers |
|
|
2200 |
Thickness 36+31mm, 2 wall layers |
Thickness 41+31mm, 2 wall layers |
Thickness 31+31+31mm, 3 wall layers |
|
|
2300 |
Thickness 36+36mm, 2 wall layers |
Thickness 41+41mm, 2 wall layers |
Thickness 36+31+31mm, 3 wall layers |
|
|
2400 |
Thickness 36+36mm, 2 wall layers |
Thickness 41+41mm, 2 wall layers |
Thickness 36+36+31mm, 3 wall layers |
|
|
2500 |
Thickness 41+36mm, 2 wall layers |
Thickness 31+31+31mm, 3 wall layers |
Thickness 41+41+26mm, 3 wall layers |
|
|
2600 |
Thickness 41+41mm, 2 wall layers |
Thickness 36+31+31mm, 3 wall layers |
Thickness 41+41+36mm |
|
|
2700 |
Thickness 41+41mm, 2 wall layers |
Thickness 36+36+31mm, 3 wall layers |
Thickness 41+41+36mm, 3 wall layers |
|
|
2800 |
Thickness 31+31+26mm, 3 wall layers |
Thickness 36+36+31mm, 3 wall layers |
Thickness 41+41+36mm, 3 wall layers |
|
|
2900 |
Thickness 31+31+31mm, 3 wall layers |
Thickness 36+36+31mm, 3 wall layers |
Thickness 41+41+41mm, 3 wall layers |
|
|
3000 |
Thickness 36+36+31mm, 3 wall layers |
Thickness 36+36+36mm, 3 wall layers |
Thickness 41+41+41mm, 3 wall layers |
Note: Special specifications are available upon request. Please contact us for further product information and pricing.
Please send your inquiries to the following email address:sales@mfgpipe.com;whatsapp:+86 15515833787 (We will respond to you within 24 hours).

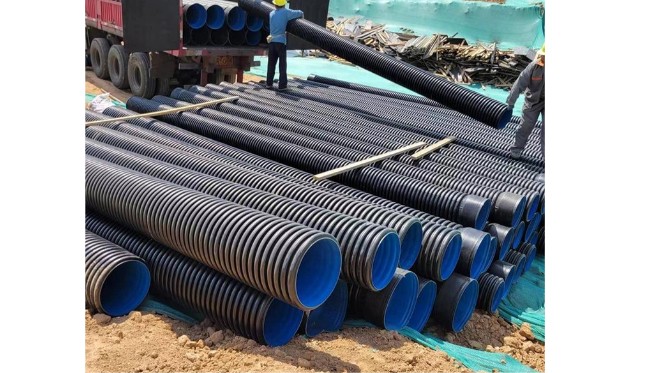

Easy Handling & Installation: Lightweight design requires no heavy equipment, reducing labor time and construction costs.
Long Service Life: Made from PE80/PE100 materials with 70–100 years durability, resistant to corrosion and aging.

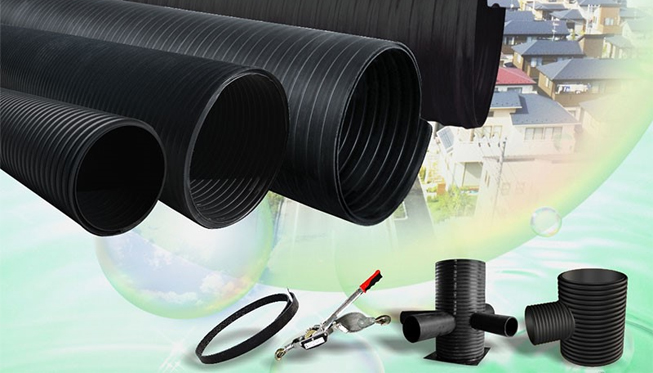

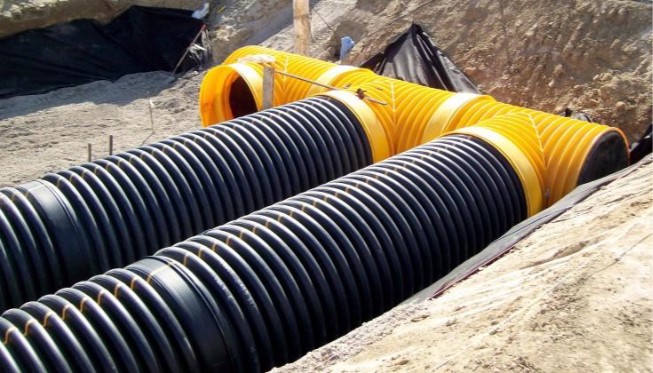

Flexible Installation Methods: Compatible with rubber-ring socket, heat fusion, or electrofusion connections for different site conditions.
Eco-Friendly & Safe: Non-toxic, recyclable HDPE material with no soil or water contamination.
High Load Capacity: Corrugated structure with ring stiffness up to SN12.5, resisting soil pressure and deformation.
Efficient Flow Performance: Smooth inner wall prevents scaling and clogging, ensuring high drainage efficiency.
Leak-Proof & Stable: Tight connections with strong seismic resistance, ensuring safe long-term operation.
Cost-Effective: Low installation and maintenance costs with extended service life for reduced total project cost.
Wide Applicability: Customizable sizes for municipal, agricultural, industrial, mining, and infrastructure projects

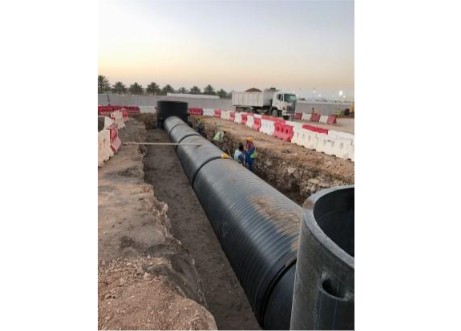

Municipal Engineering: Stormwater drainage, sewage systems, and flood control networks.
Agriculture & Landscaping: Irrigation and drainage systems for farmland, orchards, and green areas.
Industrial Sector: Wastewater discharge, chemical effluent, and landfill leachate drainage.
Road & Railway Projects: Subsurface drainage and cable protection systems.
Mining Engineering: Ventilation, drainage, and underground protection applications.

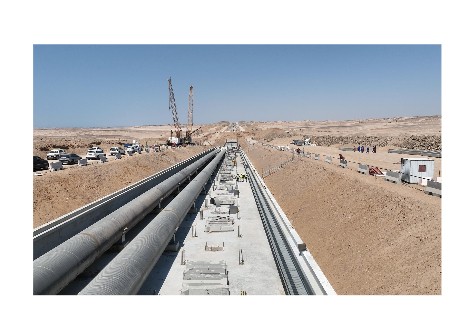

Water Conservancy Projects: Flood discharge, water diversion, and hydraulic drainage systems.
Construction Projects: Building drainage, foundation protection, and underground utility systems.
Other Infrastructure: Any drainage, protection, or fluid conveyance applications in complex environments.
