Power Solution Parameters
-

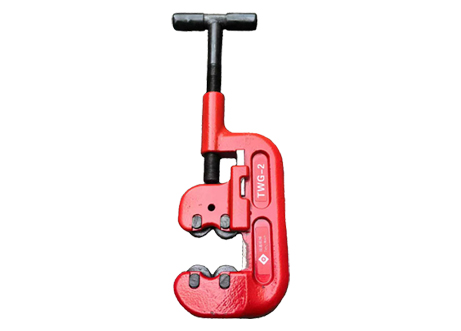

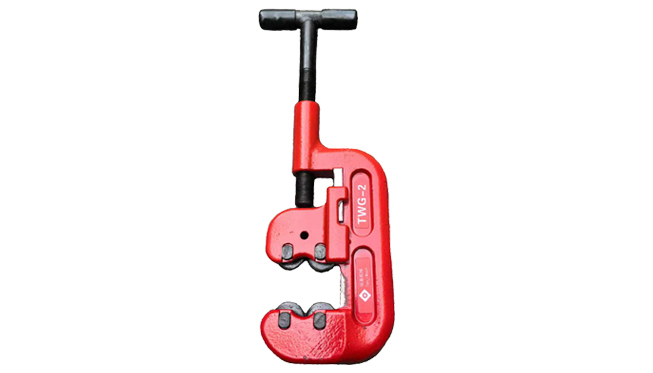

The metal pipe cutter below 2 inches (Model: TGW-2) is an efficient tool specially designed for cutting metal pipes in small spaces and various scenarios.
It is equipped with four groups of blades, adopting a straight-line cutting process, combined with thin and sharp special blades, which fundamentally reduces cutting resistance and achieves labor-saving and fast cutting effect, completing precise cutting without brute force.
-
Thanks to the four-blade collaborative design, the equipment does not need to rotate 360 degrees. It only needs to swing back and forth between 90-140 degrees to quickly complete pipe cutting, greatly improving work efficiency. At the same time, the high sharpness of the blades allows the equipment handle to be designed shorter, with flexible and convenient operation, perfectly adapting to narrow working spaces, and easily dealing with hard-to-operate scenarios such as between pipes and above the head, solving the pain point of limited operation of traditional pipe cutters.
The equipment has a compact overall structure and light weight, which is easy to carry and transport, adapting to various complex working environments, balancing practicality and safety, and is an ideal choice for metal pipe cutting in municipal, construction, maintenance and other industries.
Core Advantages
Efficient and Labor-Saving: Four-blade straight-line cutting design, thin and sharp blades, low cutting resistance, extremely labor-saving operation, fast cutting speed, and greatly shortened working time.
Small Space Adaptation: The handle is designed to be short, no large-scale swing is required, and cutting can be completed by swinging back and forth only between 90-140 degrees, easily adapting to narrow working spaces such as above the head and between pipes.
Precise Cutting: Four blades move in a straight line synchronously, cutting is flat and straight, no burrs or skewness, no secondary processing is required, ensuring cutting precision.
Multi-Environment Competence: Adapt to various complex working scenarios, and can work stably in special scenarios such as ditches, water, flammable and explosive environments, with strong adaptability.
Lightweight and Portable: The equipment weighs only 4 kilograms, is small in size, easy to carry and transport on site, and reduces the labor intensity of operators.
Clear Adaptation: Specially designed for metal pipes below 2 inches, standard equipped with carbon steel cutting blades, and special blades for cast iron cutting can be customized, making selection convenient.
Technical Parameters
|
Name
|
Model
|
Suitable Pipe Diameter (Inch)
|
Suitable Pipe Diameter (mm)
|
Style
|
Length (Inch)
|
Length (mm)
|
Weight (Lb)
|
Weight (Kg)
|
|
Metal Pipe Cutter
|
TGW-2
|
1/2-2
|
21-63
|
4-Blade
|
14.3
|
362
|
7.2
|
4
|
Note: The standard blade of the pipe cutter is for carbon steel cutting. When cutting cast iron, it must be marked when placing an order, and it can be used with a suitable special blade for cast iron (Model: THI2 1/2).
Application Scenarios
This metal pipe cutter below 2 inches has strong adaptability, can easily cope with various complex working environments, and is widely used in the following scenarios:
Underground Operations: Wet and narrow underground scenarios such as ditches and underground pipe maintenance;
Wading Operations: Pipe cutting and emergency repair operations in water and waterlogged areas;
Dangerous Environments: Pipe processing in flammable and explosive places (such as petroleum and chemical sites);
High-Altitude/Narrow Spaces: Narrow areas that are difficult to operate, such as between pipes above the head and inside equipment;
Conventional Scenarios: Cutting of water supply and drainage, fire-fighting pipes in the construction industry, maintenance of gas and heating pipes in municipal engineering, processing of supporting pipes for mechanical manufacturing equipment, etc.
Usage Notes
When installing the blade, ensure that the pipe cutter is in a stopped state and installed firmly to avoid loosening and falling off during operation, which may affect cutting precision and operation safety;
Select the corresponding blade according to the type of pipe to be cut. The standard blade is suitable for carbon steel cutting. For cast iron cutting, it is necessary to mark in advance and replace it with a special blade;
Keep the equipment stable during operation, cut by swinging back and forth within the range of 90-140 degrees, avoid excessive force or exceeding the swing range, and extend the service life of the equipment;
When working in special environments such as flammable, explosive and wading, corresponding safety protection measures must be taken to ensure operation safety;
The equipment should be stored in a dry and ventilated place, avoiding moisture and collision to prevent parts from rusting and blades from being damaged;
If the blade is found to be worn or the blade edge is blunt during operation, it should be replaced in time to avoid affecting cutting efficiency and cutting precision.
Adaptable Blade Description
This TGW-2 pipe cutter can be adapted to the following special blades, which can be selected as needed to ensure cutting effect and equipment adaptability:
Standard Blade: Model THS2 blade, suitable for cutting carbon steel, stainless steel and copper pipes, with a blade length of 0.288 inches (7.2 mm);
Special Blade for Cast Iron: Model THI2 1/2 blade, suitable for cutting cast iron and ductile iron, with a blade length of 0.154 inches (3.9 mm), which must be specially marked when placing an order.
Customization Service & Support
We provide comprehensive service support and personalized adaptation services to solve your selection, use, customization and after-sales needs:
Selection Consultation: If you are not sure about the suitable blade type, you can provide the type of pipe to be cut, and we will accurately recommend the corresponding blade for you;
Customization Service: It is necessary to mark in advance for cutting cast iron, and special blades for cast iron can be customized synchronously to meet personalized operation needs;
After-sales Guarantee: For quality problems of equipment and blades, you can enjoy the return and exchange service, and professional operation and maintenance guidance is provided;
Bulk Customization: Bulk purchase of equipment and blades is supported, with exclusive discounts available, just communicate in advance.
