PP compression reducing tee, compatible with HDPE pipe systems, available in PN16 and PN10 for DN20–110mm. High quality, durable, 30-year service life, competitive wholesale price, and fast delivery.
For more information or quotation, please feel free to contact us.
WhatsApp: 8615515833787 WeChat: 15515833787Size: DN20–110mm (custom sizes available)
Pressure rating: PN16 for 20–63mm, PN10 for 75–110mm (at 20°C working condition)
Material: High-quality PP-B (black polypropylene copolymer)
Supply capacity: 3×40ft containers per week, suitable for bulk orders
Certifications: ISO 14001, ISO 9001, OHSAS 18001, CE, BS EN 12001, fully compliant with international standards

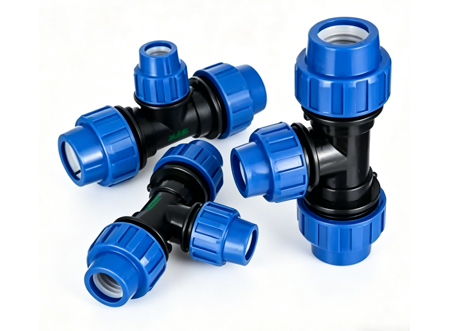

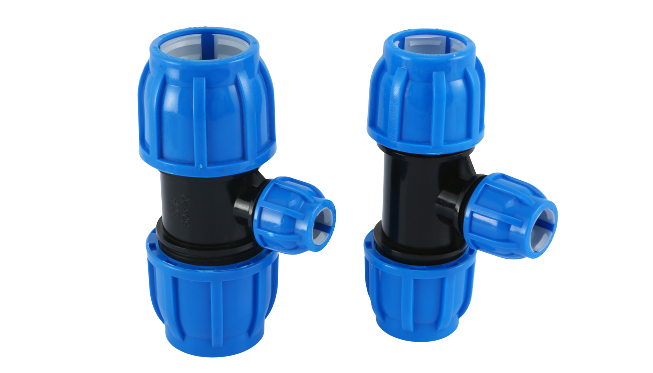

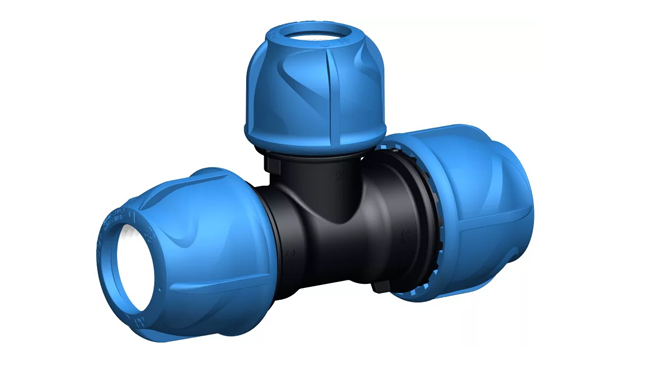

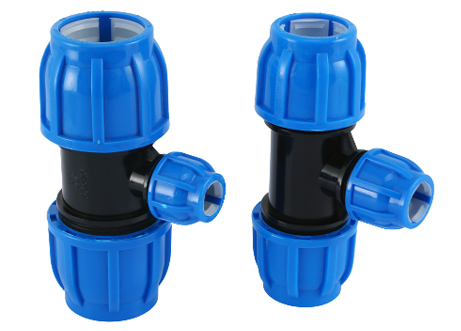

PP compression reducing tee is mainly used to connect HDPE pipes with different diameters, ensuring stable fluid transmission. It is characterized by a branch outlet with a different diameter from the two main ends (note: if both ends are the same size and the branch is different, it is a reducing tee; if all three outlets are the same size, it is an equal tee).
|
Mark |
Part Name |
Material |
Color |
|
A |
Cap |
High quality polypropylene black co-polymer (PP-B) |
Blue |
|
B |
Clinching Ring |
POM resin |
White |
|
C |
Blocking Bush |
High quality polypropylene black co-polymer (PP-B) |
Black |
|
D |
“O” Ring Gasket |
NBR rubber |
Black |
|
E |
Body |
High quality polypropylene black co-polymer (PP-B) |
Black |
PP compression joints are designed to withstand PN16 bars at 20 °C. as follows:
Working pressure is 20 ° C
DN20-63mm：PN16bars
DN75-110mm：PN10bars
| Name |
PP compression reducing tees |
|
Size(mm) |
DN20-110mm |
|
Working pressure at 20 ° C |
PN16: 20-63mm，PN10: 75-110mm |
|
Material |
High quality PP-raw mateiral |
|
Colours |
Blue and black |
|
Standard |
EN 712/713/715/911; ISO 3501/3503/3458/3459 |
|
Sample |
available |
|
Packing |
Cartons |
|
MOQ |
option |
|
Production |
According to the total quantity 20 ft container: 10-20 days，40 ft: 15-25 days |
|
Warranty |
Normal use for 15 years |
|
Payment term |
TT or L/C at sight |
|
FOB Port |
Qingdao, Tianjin, Shanghai, Chongqing |
|
Country of Original |
China |
Easy installation: Mechanical connection design, no special equipment required. Simple operation, significantly reduces installation time and cost compared with traditional fusion welding.
Excellent sealing performance: Pressure-sealing structure effectively prevents leakage, ensuring safe and reliable pipeline operation.
Durable material: Made of high-quality PP-B material with strong corrosion resistance, anti-aging performance, lightweight and high strength, suitable for various working conditions.
Wide size range: Full range from DN20–110mm, custom sizes available, compatible with complete PP compression fittings system.
International standards: Manufactured in strict compliance with international standards and certified for global export.
Wide application: Suitable for water supply, irrigation, chemical, pharmaceutical, and water treatment systems, compatible with HDPE water, oil, and gas pipelines.
