Core Parameters
-
Size: DN50–250 mm (OD50–225 mm), customization available
Material: PVC (UPVC, CPVC)
Color: Standard yellow and black, customizable options available
Standards: GA305-2001, JG3050-2000, compliant with SN4, SN8, SN10 strength grades
Wall Thickness: 3 mm–15 mm
Service Life: PVC up to 70 years, CPVC up to 50 years, with a 30-year quality warranty under normal use
Certifications: CE, ISO 9001, ISO 14001, OHSAS 18001 certified
-

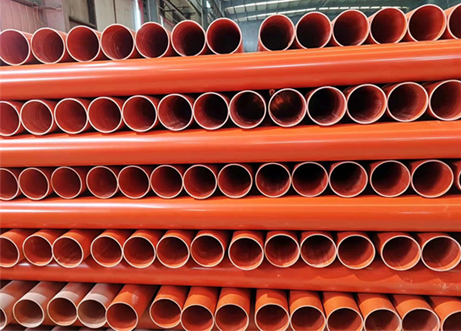

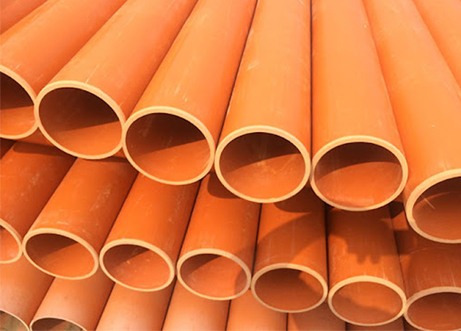

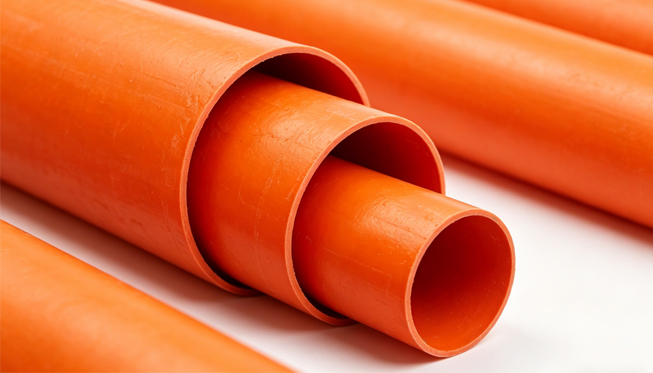

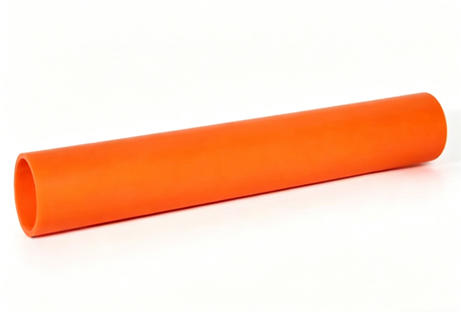

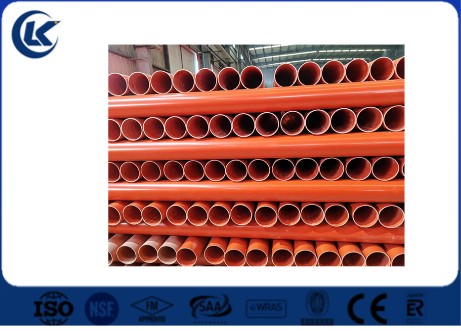

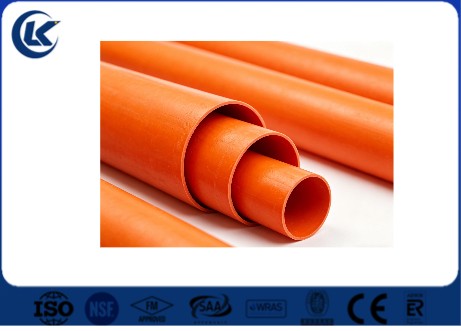

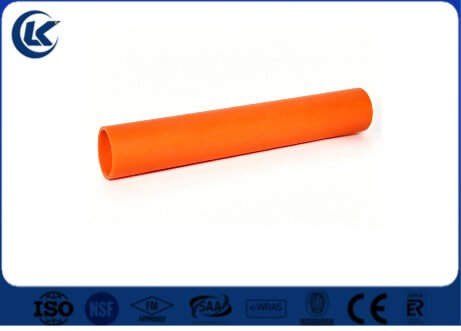

Our PVC cable protection conduits (PVC electrical conduits) are manufactured using high-quality PVC (UPVC, CPVC) raw materials sourced from leading producers such as Borealis, Shanghai Petrochemical, and Sinopec. They are widely used in urban power network construction and renovation, urban redevelopment, residential development, and industrial plant projects.
These conduits are suitable for a wide range of applications, including power transmission, street lighting, garden and landscape lighting, smart city systems, cable TV, telecommunications, and intelligent transportation systems, providing comprehensive protection for electrical cables in various environments.
Core Functions

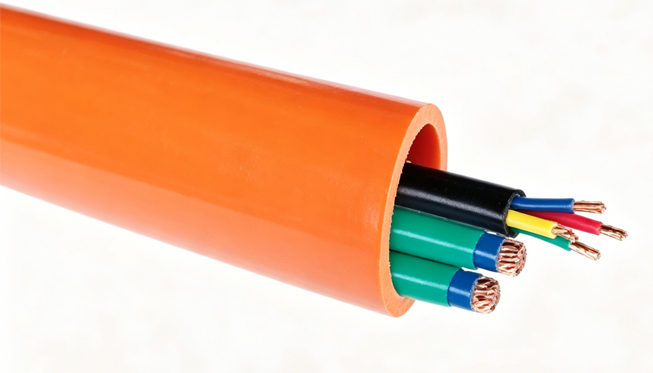

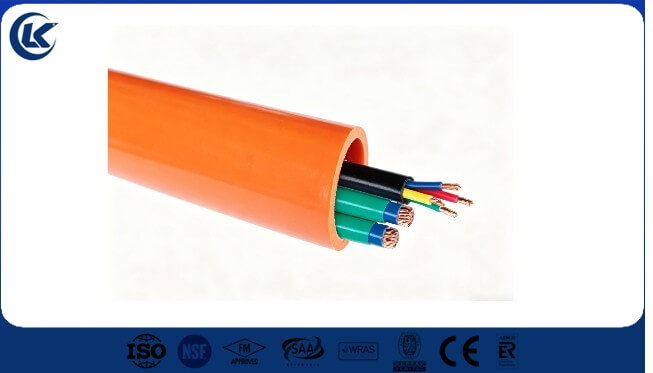

Safety Protection: Effectively protects cables from external damage, moisture, insects, and rodents, preventing chewing and extending cable service life.
Insulation & Flame Retardancy: Excellent insulation performance, withstands up to 25 kV without breakdown. Strong flame-retardant property that self-extinguishes when away from fire, ensuring electrical safety.
Efficient & Practical: Smooth inner wall and lightweight structure for easy installation. Improves cable load capacity, supports heat dissipation, slows cable aging, and reduces maintenance costs.
High Strength & Durability: Withstand pressure up to 1250N. Suitable for embedding in concrete and harsh construction environments without damage.
Specification Parameter Table
|
Specification Series
|
Nominal Size (DN/OD)
|
Material
|
Thickness Range
|
Applicable Standards
|
|
SN4
|
DN50-250mm (OD50-225mm)
|
UPVC/CPVC
|
3mm-8mm
|
GA305-2001, JG3050-2000, SN4
|
|
SN8
|
DN50-250mm (OD50-225mm)
|
UPVC/CPVC
|
6mm-12mm
|
GA305-2001, JG3050-2000, SN8
|
|
SN10
|
DN50-250mm (OD50-225mm)
|
UPVC/CPVC
|
8mm-15mm
|
GA305-2001, JG3050-2000, SN10
|
Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.
Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.
Advantages
High-Quality Raw Materials: Made from premium branded PVC resin, ensuring strong structure and stable performance from the source.
Material Options: Available in UPVC and CPVC. CPVC offers higher heat resistance (15°C higher than UPVC), maintains shape above 93°C, and provides superior insulation (withstanding over 30,000V).
High Strength Performance: CPVC conduit achieves ring stiffness up to 10 kPa, exceeding national standards for buried plastic pipes. It withstands 1 kg impact from 2 m height at 0°C, offering excellent low-temperature resistance.
Easy Installation: Modular assembly with elastic rubber ring sealing, ensuring fast installation and strong sealing. Suitable for night construction with quick road reopening, improving efficiency.
Long Service Life: Corrosion-resistant, acid and alkali resistant, and anti-aging. PVC lasts up to 70 years, CPVC up to 50 years, with a 30-year quality warranty under normal use.
Flexible Customization: Supports customization of size, color, and length for different applications and transportation needs.
