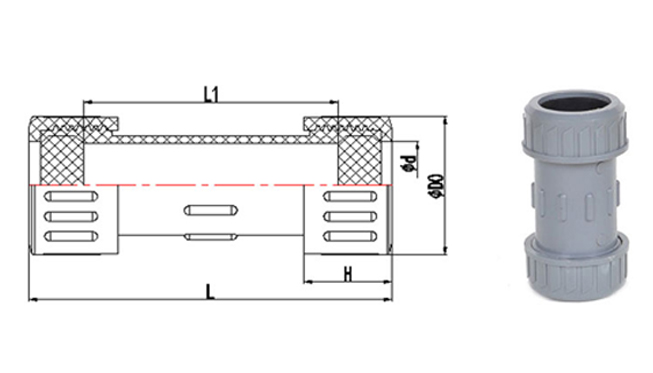

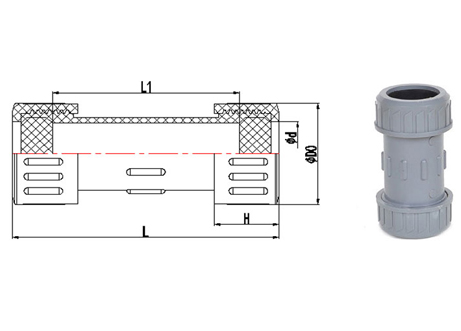

Dimension Table
|
Normal size
DN（mm）
|
diameter（mm）
|
|
|
D0
|
d
|
H
|
L1
|
L
|
|
20
|
44.50
|
20.60
|
30.00
|
100.00
|
123.00
|
|
25
|
49.00
|
25.50
|
31.00
|
111.50
|
131.00
|
|
32
|
57.50
|
33.00
|
34.50
|
115.00
|
140.00
|
|
40
|
72.30
|
40.60
|
37.00
|
120.00
|
148.00
|
|
50
|
77.00
|
51.00
|
40.00
|
132.00
|
165.00
|
|
63
|
91.60
|
69.00
|
47.00
|
153.00
|
190.00
|
|
75
|
105.50
|
76.00
|
47.00
|
183.00
|
210.00
|
|
90
|
132.00
|
92.00
|
55.00
|
210.00
|
258.00
|
|
110
|
158.00
|
112.50
|
62.00
|
230.00
|
290.00
|
|
125
|
183.00
|
125.75
|
52.00
|
184.50
|
290.00
|
|
160
|
219.00
|
161.00
|
59.00
|
248.50
|
283.00
|
Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.
Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.
Advantages
Henan Lukuang Trade PVC compression fittings have become the preferred choice for global piping projects, offering cost savings, efficiency, and safety through eight key advantages:
✔Lightweight and easy to transport:Each piece weighs only 1/6 of a cast iron pipe, significantly reducing shipping costs and simplifying handling, especially for large-scale projects.
✔High strength and excellent pressure resistance:Can withstand up to 45 MPa, far exceeding standard requirements, ensuring stable pressure and preventing high-pressure leaks for long-term system safety.
✔Low resistance and efficient flow:Smooth internal surfaces prevent clogging and reduce fluid transmission loss by up to 30% compared to cast iron pipes, improving efficiency and reducing energy consumption.
✔Corrosion-resistant and durable:Excellent resistance to acids, alkalis, chemicals, and electrochemical corrosion; suitable for outdoor, underground, and harsh environments without aging or corrosion.
✔Easy installation, time-saving:Supports adhesive and flange connections, simple to operate with reliable sealing, no complex equipment required, significantly shortening installation time and labor costs.
✔Long service life and high cost-performance:Up to 50 years under normal working pressure, far exceeding industry averages, minimizing replacement frequency, maintenance costs, and operational risks.
✔Cost-effective and competitive:Lower transportation and installation costs; can reduce total project costs by 30%-40% compared to cast iron pipes. Factory direct supply ensures competitive wholesale pricing.
✔Non-toxic and eco-friendly:Fully meets drinking water standards, contains no harmful substances, preventing secondary contamination, suitable for potable water, pharmaceutical, and other hygiene-sensitive applications.
