PVC 90° elbow is designed for water, oil, and gas transmission systems. It comes with a 30-year quality warranty and offers highly competitive wholesale pricing. Common sizes are in stock with fast delivery available.
For more product details and quotations, please feel free to contact us at any time.
WhatsApp: 8615515833787 WeChat: 15515833787Size: DN20mm–1000mm, customizable available
Pressure Rating: 4, 6, 9, 12, 16, 20, 25 bar
Raw Material: 100% virgin high-quality PVC resin
Supply Capacity: 3 × 40ft containers per week
Certifications: CE, BS EN 12001, ISO9001, ISO14001, OHSAS 18001
Henan Lukuang Trading is a professional one-stop supplier of PVC pipes, fittings, and valves, serving industries such as water supply, chemical, water treatment, oil & gas, environmental protection, and pharmaceuticals. We strictly follow ISO4427 and ISO9001 standards, using high-quality raw materials and advanced production systems with full laboratory quality control to ensure stable and reliable pipeline solutions for global customers.

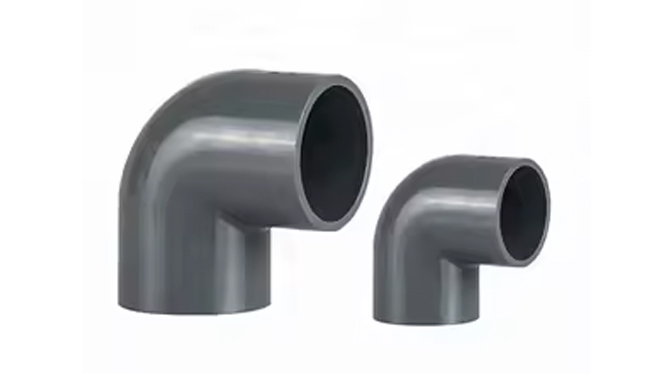

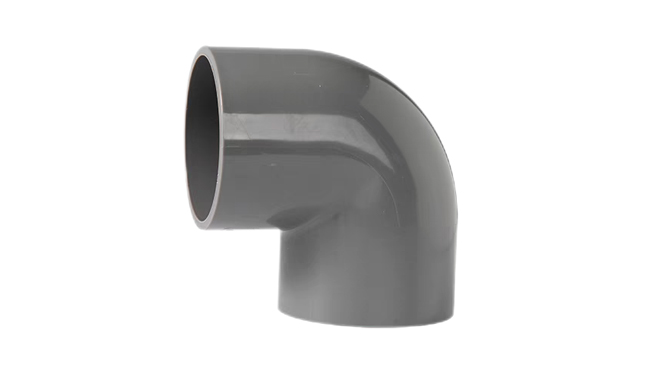

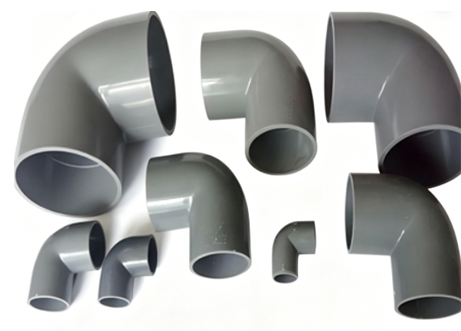

The PVC 90° elbow is used for 90-degree pipeline connections in both same-diameter and reducing systems. It is widely applied in municipal, industrial, and construction piping networks to achieve smooth directional changes and optimize pipeline layout.
Enables 90° pipeline direction changes for complex piping layouts
Widely used in municipal engineering, water supply & drainage, oil & gas transportation, and chemical fluid systems
Improves pipeline layout efficiency while ensuring better sealing performance and system stability
|
Products Name |
PVC Elbow 90° |
|
Sizes |
DN 20mm-1000 mm |
|
Pressure Rate |
4, 6, 9, 12, 16,20, and 25 Bar |
|
Material |
High quality PVC raw materials |
|
Colour |
Black, gray, or as per request |
|
Standard |
EN12201-3，EN1555，EN ISO 15494 |
|
Sample |
Sample available |
|
Packing |
Carton or PP bag |
|
MOQ |
Negotiable |
|
Production |
Depending on the order quantities. 20 ft: 7-10 days，40 ft: 15-20 days |
|
Warranty |
30 years for normal using |
|
Payment Term |
T/T or L/C at sight |
|
Country of Original |
China |
|

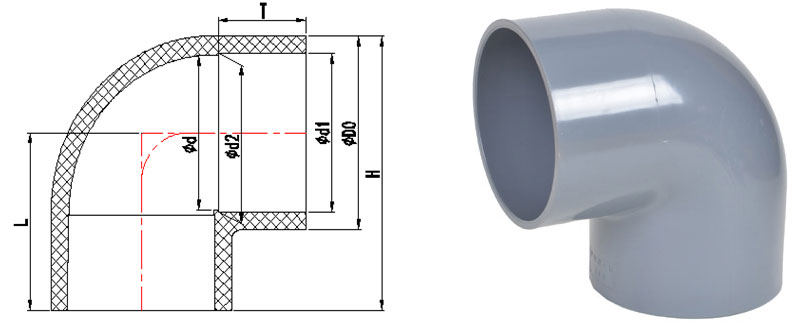

Normal size DN（mm） |
diameter（mm） |
||||||
|
D0 |
D1 |
D2 |
d |
Ť |
L |
H |
|
|
20 |
24.48 |
20.24 |
19.96 |
19.00 |
17.00 |
28.50 |
40.74 |
|
25 |
30.18 |
25.24 |
24.95 |
24.00 |
19.50 |
33.50 |
48.59 |
|
32 |
37.14 |
32.25 |
31.95 |
31.00 |
23.00 |
40.50 |
59.07 |
|
40 |
46.56 |
40.28 |
39.95 |
39.00 |
27.00 |
48.50 |
71.78 |
|
50 |
57.10 |
50.33 |
49.94 |
49.00 |
32.00 |
58.50 |
87.05 |
|
63 |
71.18 |
63.34 |
62.93 |
62.00 |
38.50 |
71.50 |
107.09 |
|
75 |
84.34 |
75.35 |
74.93 |
73.50 |
44.50 |
83.25 |
125.42 |
|
90 |
99.10 |
90.38 |
89.93 |
88.50 |
52.00 |
98.25 |
147.80 |
|
110 |
120.40 |
110.42 |
109.92 |
108.00 |
62.00 |
118.00 |
178.20 |
|
125 |
135.50 |
125.52 |
124.93 |
123.00 |
69.50 |
118.50 |
186.25 |
|
140 |
153.10 |
140.58 |
139.88 |
138.00 |
77.00 |
149.00 |
225.55 |
|
160 |
175.00 |
160.62 |
159.87 |
158.00 |
87.00 |
169.00 |
256.50 |
|
180 |
202.50 |
180.81 |
179.91 |
178.50 |
97.00 |
190.00 |
291.25 |
|
200 |
219.30 |
200.90 |
199.85 |
197.00 |
107.00 |
211.00 |
320.65 |
|
225 |
243.30 |
226.02 |
224.83 |
221.00 |
119.50 |
235.50 |
357.15 |
|
250 |
271.40 |
251.15 |
249.41 |
247.00 |
132.00 |
261.00 |
396.70 |
|
280 |
314.80 |
281.46 |
280.16 |
278.00 |
147.00 |
276.00 |
433.40 |
|
315 |
344.50 |
316.55 |
315.05 |
312.00 |
165.00 |
326.50 |
498.75 |
|
355 |
385.00 |
356.63 |
355.03 |
326.00 |
183.50 |
368.25 |
560.75 |
|
400 |
432.70 |
401.60 |
400.00 |
398.50 |
208.00 |
413.00 |
629.35 |
Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.
Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.
✔Lightweight & Easy Transportation: Only 1/6 the weight of cast iron pipes, significantly reducing transport costs
✔High Strength & Pressure Resistance: Maximum pressure resistance up to 45 MPa, suitable for high-pressure applications
✔Low Flow Resistance: Smooth inner wall prevents scaling and reduces flow loss by 30% compared to cast iron pipes
✔Strong Corrosion Resistance: Resistant to acids, alkalis, and chemical corrosion; will not rust over long-term use
✔Easy Installation: Solvent cement or flange connection ensures fast construction and reliable sealing
✔Long Service Life: Up to 50 years under normal operating conditions
✔Cost-Effective: Overall cost is 30–40% lower than cast iron piping systems
✔Hygienic & Non-toxic: Complies with drinking water standards, ensuring safe and clean fluid transport with no secondary pollution
