Core Parameters

Size: DN25–110mm (custom sizes available to suit different applications)

Pressure Rating: 4, 6, 9, 12, 16, 20, 25 bar, with excellent pressure resistance for various working conditions

Service Life: Up to 70 years, reducing the need for frequent replacement and lowering long-term maintenance costs

Raw Material: High-quality PVC combined with high-strength steel wire, non-toxic and eco-friendly, compliant with safety standards

Certifications: CE, ISO9001, ISO14001, and OHSAS 18001 certified, ensuring reliable quality and global export readiness

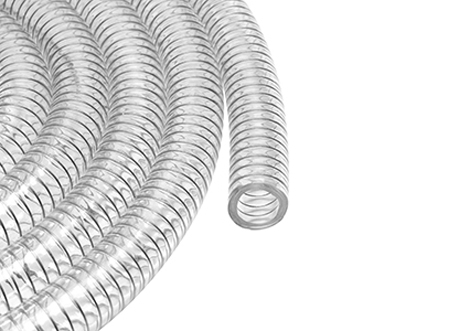

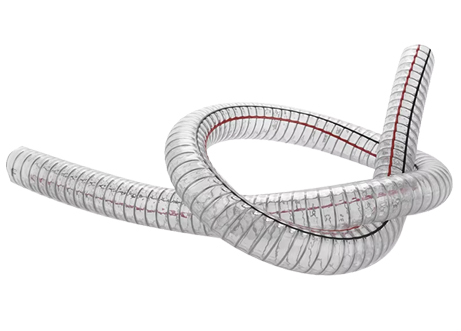

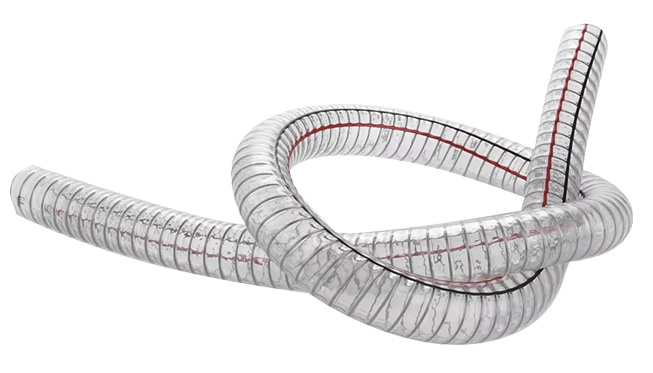

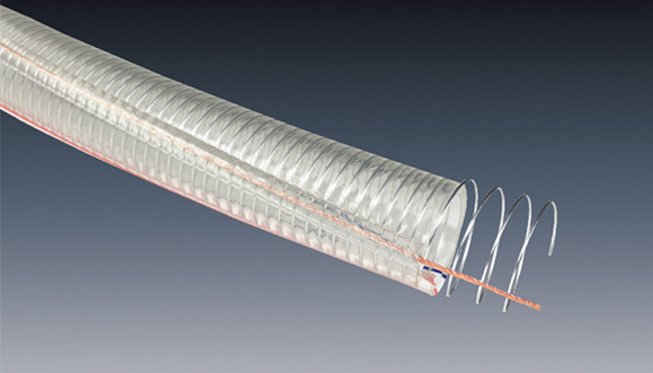

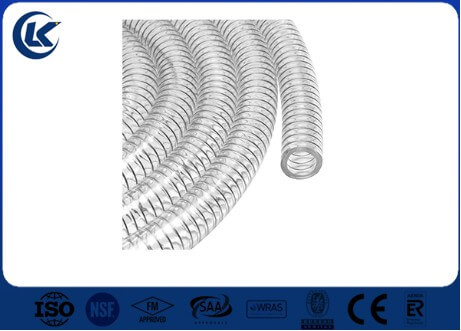

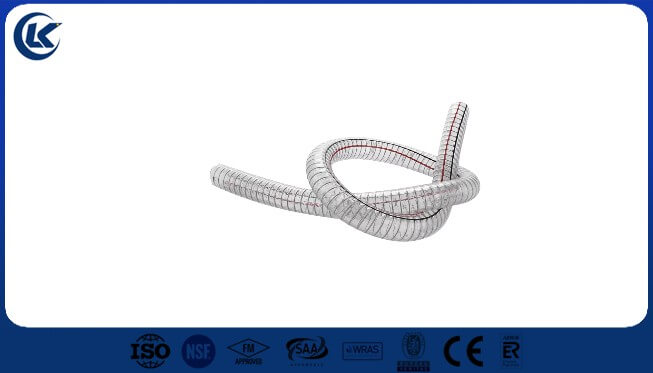

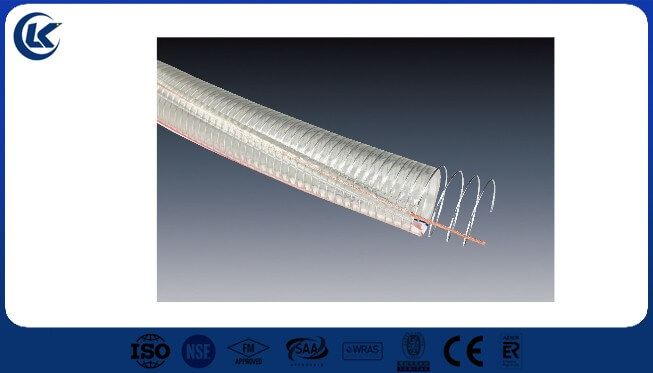

PVC steel wire reinforced hose, developed by Henan Lukuang Trading, is a high-performance composite pipe featuring a unique three-layer structure. The inner and outer layers are made of premium flexible PVC, smooth and bubble-free, while the middle layer is reinforced with high-density steel wire mesh, greatly improving strength, anti-twist performance, and ring stiffness. This effectively solves the common issues of deformation and low pressure resistance in traditional PVC pipes.

The pipe is non-toxic, odorless, and chemically stable, with smooth inner and outer surfaces that ensure efficient flow and prevent secondary contamination. Combining durability and safety, it is a cost-effective alternative to stainless steel and metal pipes, widely used in various complex industrial applications.

Product Basic Information Table

Name	PVC Steel Mesh Reinforced Pipe
Size	DN25-110mm
Feature	Flame resistance and anti-static
Material	PVC, steel wire
Colors	Grey, white, or as per request
Standard	ASTM D1785, AS / NZS 2032, ISO 9852, SABS 996
Remarks	Customers’ logo available
Sample	Samples are available

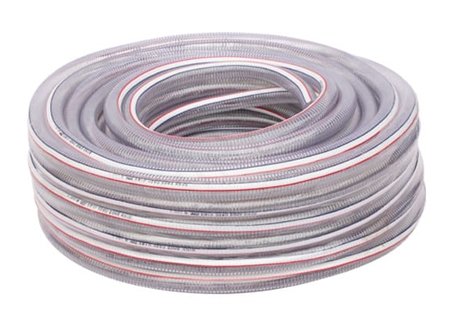

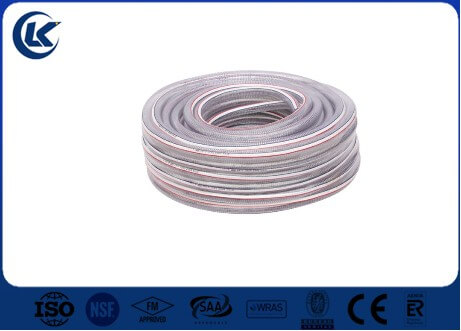

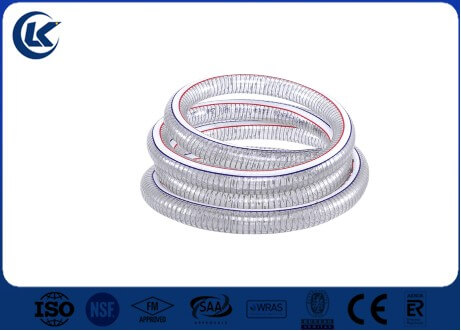

Packing	Normal export packing. Pipe diameter of 20mm-63mm can be made into 50m / 100m / 200m / 300m long per coil.
MOQ	Negotiable
Production	Depending on the order quantities. 20 ft: 7-10 days，40 ft: 15-20 days
Certification	CE Certification, ISO9001, ISO14001, OHSAS 18001
Warranty	30 years for normal using
Payment Term	T/T or L/C at sight
Country of Original	China

Specification Parameter Table

Inside diameter（mm）		Wall thickness（mm）		线径（mm）
Normal size DN（mm）	tolerance（mm）	Wall thickness（mm）	tolerance （mm）	线径（mm）
Ø25	1.5	3.0	0.3	0.8〜1.0
Ø32	1.5	3.0	0.3	1.0〜1.2
Ø40	1.8	3.0	0.3	1.2〜1.4
O44		3.5	0.4	1.2〜1.4
Ø50		3.5	0.4	1.2〜1.6
Ø63		5	0.5	1.4〜1.8
Ø75	2.2	5	0.5	1.6〜2.0
Ø90		5	0.5	1.8〜2.2
Ø110		6	0.8	2.0〜2.4

Note: If you have specific requirements regarding product specifications, we can provide customized solutions tailored to your needs. For further product details and quotation information, please contact us.

Please send an email to sales@mfgpipe.com or reach out via WhatsApp at +86 15515833787; we will respond within 24 hours.

Product Categories

According to different application fields, Henan Lukuang PVC steel wire reinforced hose is divided into two series, both designed to meet the core requirements of non-corrosive and low-concentration chemical resistance:

Industrial Grade: Used for industrial water, gas, oil, wastewater, powder, and chemical materials. It offers strong pressure resistance and corrosion resistance for complex industrial conditions.

Food Grade: Suitable for food, pharmaceutical, and cosmetic industries, used for transporting juice, milk, drinking water, and other hygienic fluids. It is non-toxic and meets strict hygiene standards.

Advantages

✔Structural Advantage:Three-layer design with smooth PVC inner/outer layers and steel wire reinforcement in the middle, providing high strength, flexibility, anti-twist, and impact resistance.

✔Physical Performance:High strength and excellent flexibility, suitable for bending and complex installation environments without special treatment.

✔Heat & Corrosion Resistance:Stable performance under high temperatures and resistant to acids, alkalis, and salt solutions, reducing maintenance costs.

✔Safe & Convenient:Flame-retardant and anti-static, safe to cut and install, lightweight for easy handling and higher installation efficiency.

✔Traceability:Embedded steel wire allows magnetic detection for easy pipeline positioning and reduced excavation damage risk.

✔Cost-Effective: Lower cost than metal pipes with long service life, reducing replacement and maintenance expenses significantly.
